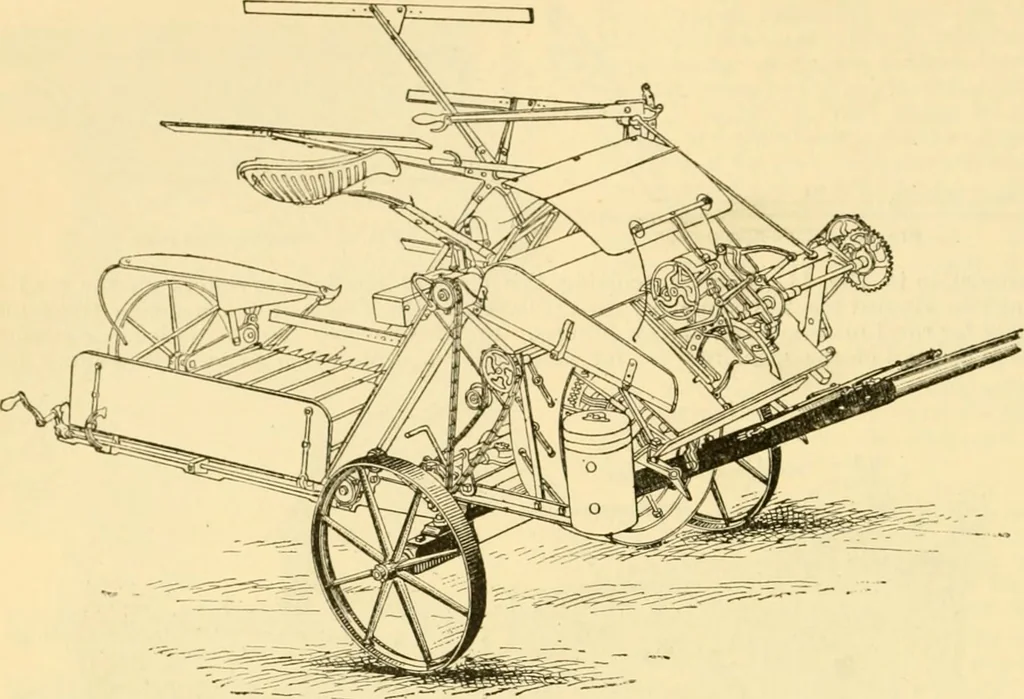

ain-links, which are cheaply replaceable without delays, and its use lightens and cheapens construction. ,,-,.. 1.^1. m-i Driving-Gear—F\g. 46 is an improved arrangement of the dnvmg-power by the Mil-waukee Co. Fig. 47 is Shaughrans adjusting device for the harvester reel, made by McCor- 430… … FiG. 45.—Woods harvester ready for shipment. ward by the hand-lever e, with their respective connecting-rods, to adapt the position of thereel in relation to the grain, the sickle-bar, and the conveyer which receives the grain. At /is a lifter-spring so attached as to sustain a greater portion of…
