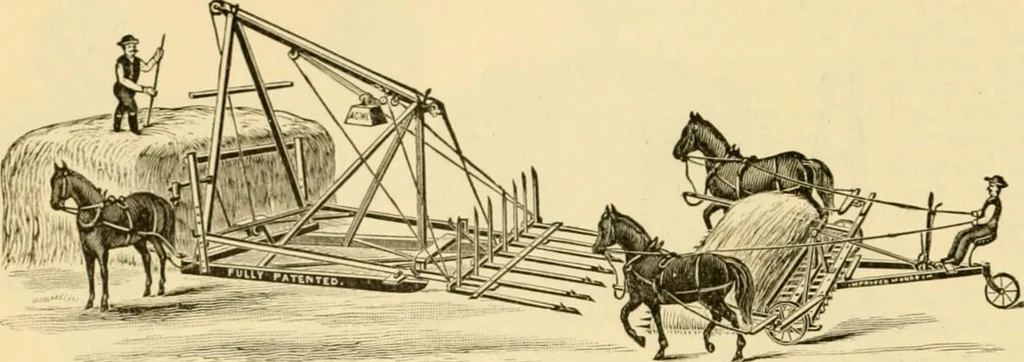

Fig. 9.—Loading or unloading haj-. w< HAY-LOADERS. ward when loaded and downward when empty. The sweep rides on two side-wheels and arear caster, the latter supporting the weight of the driver, who controls the dip of the sweep- … FiG. 10.—Acme hay-gatherer and raker. teeth by a hand-lever. The ricker-stand may be moved on its runners by two horses alongthe side of the line of the stack, to make the stack of any length.Hav-Fork Gatherer : see Hay Carriers and Kickers. HAY-LOADERS. TheVictor Hay-Loader (Fig. 1) is for loading…
