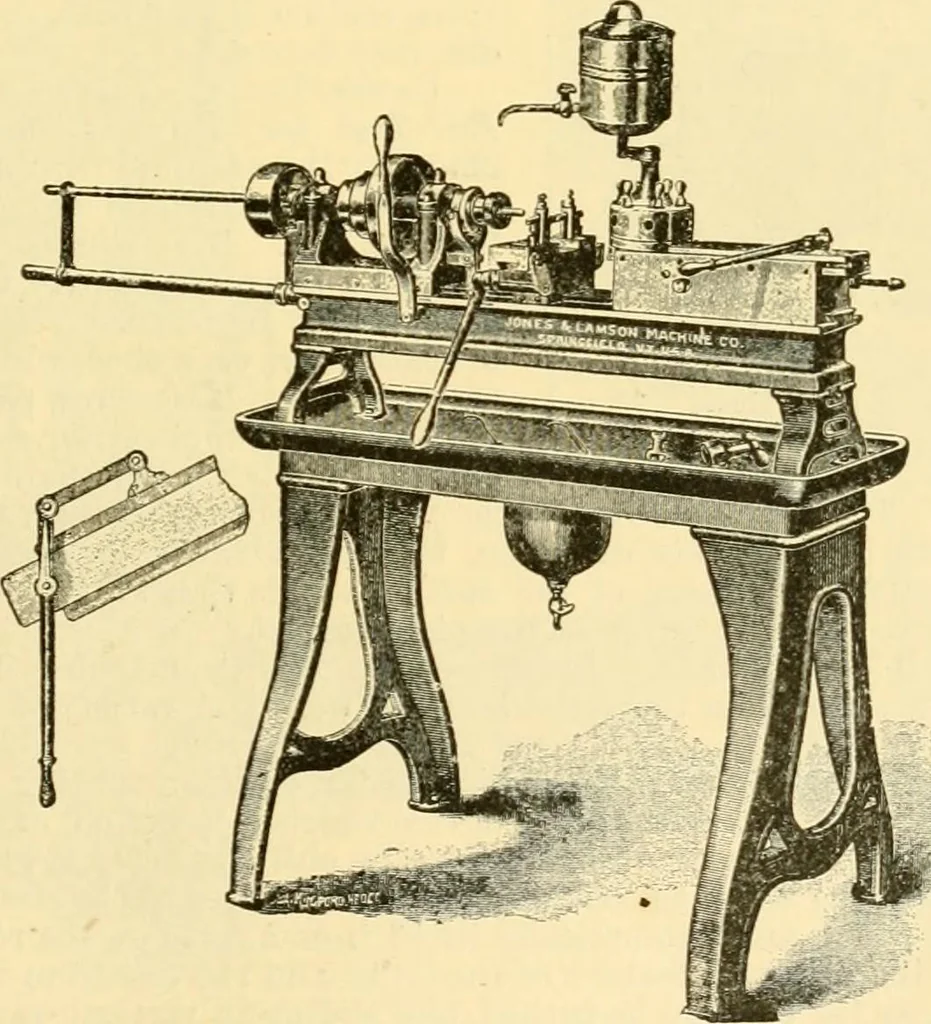

thus fed forward through the chuck to thestop, and held there until the chuck is again closed. The principal dimensions of the machine are: Working length, 24 in.; hole throughspindle, 2| in. ; diameter of turret, 16 in.; swing over bed, 10 in.; width of belt used, i^ in.;length of bed, G ft. 8… … Fig. 24.—Turret-lathe with roller-feed and automatic chuck. machines. Fig. 24 shows the turret-lathe with the feed and chuck applied. The operation isas follows: The lever near the head is pulled forward: this opens the chuck, at the same time.tarting the roller or wire feed, and the stock is…
