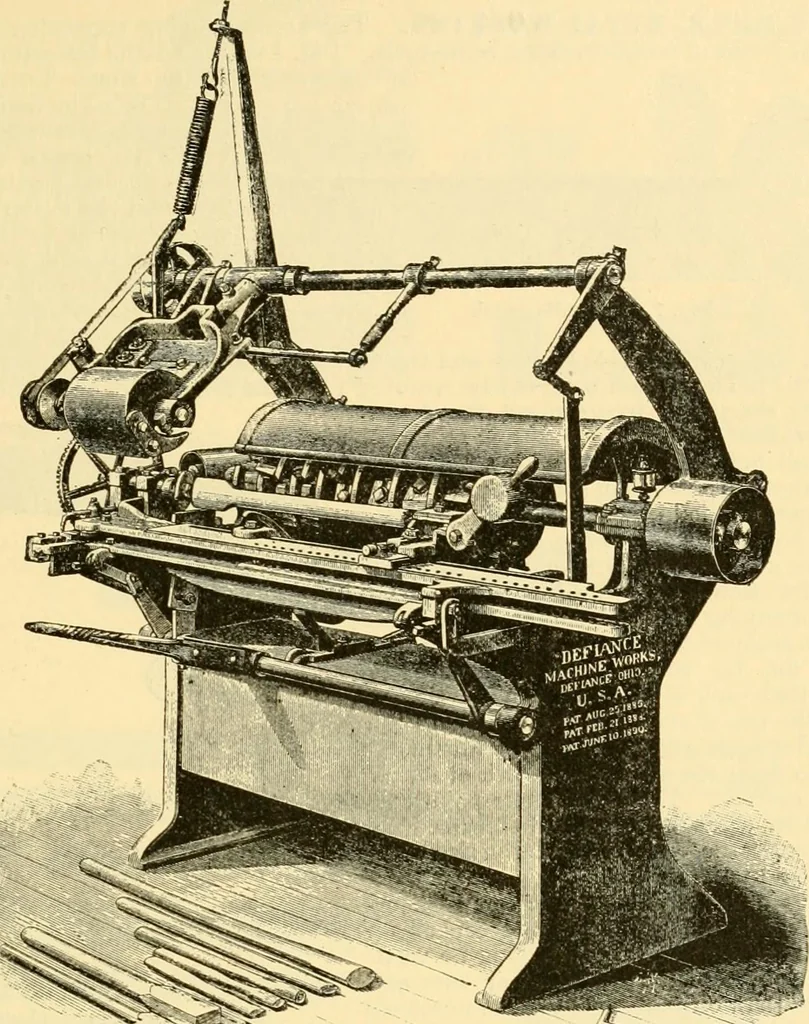

on which itvibrates for oval turning. At the opposite end of the head-center spindle is a cast-iron camof the shape that it is desirerl to turn, this cam riding against an uprigiit shoe extending upfrom the lower taljle, and held snug against the shoe by a coiled spring. ^^ hen the table is LATHES,… … Fig. 3.—Spoke and handle lathe. corresponding with the shape of the cam. When the pivot is placed directly opposite thetail center the machine will turn the woi-k round at the tail end, gradually changing in sec-tion toward the other end, where it will correspond with the shape of the cam. For…
