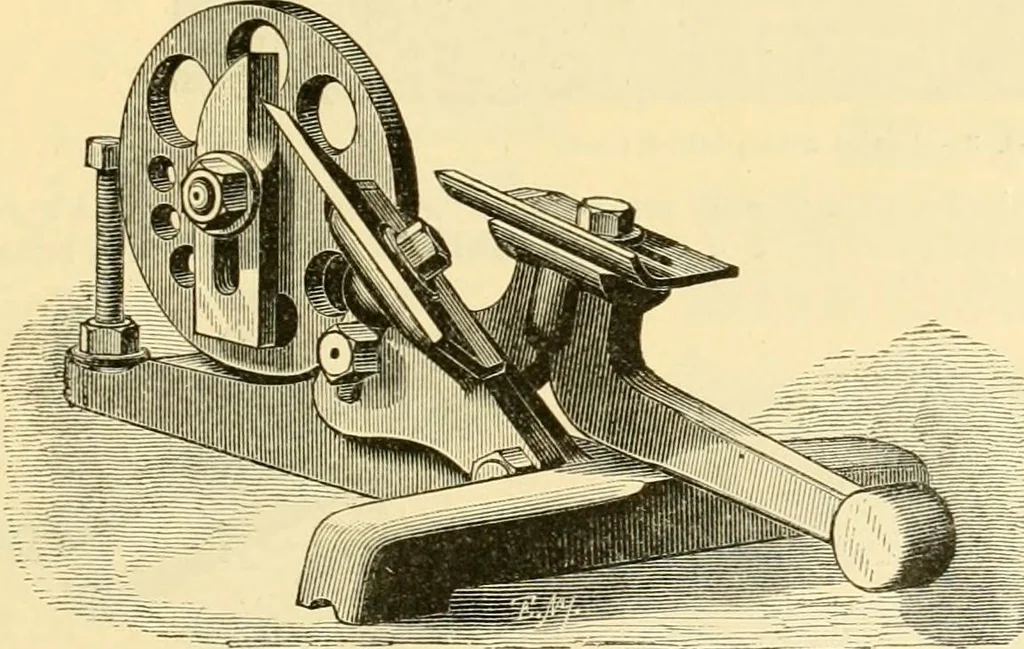

d by the move-ment of the table, the sectionturned being governed by a camupon the live center table. Itwill turn squai-e, octagonal, orany other section desired. A desirable attachment to anyordinary wood-lathe, that is suf-ficiently strong for turning rake-handles and similar pieces, is a… … Fig. 4.—Rake-handle lathe. 473 LATHE-TOOLS, METAL-WORKIXG. the disk itself, which rotates on a horizontal axis. The article turned is finished to correct form by a knife on a swinging arm, which passes over u pattern fastened to the lathe-shears in front. LATHE-TOOLS, METAL-AVORKING. The…
