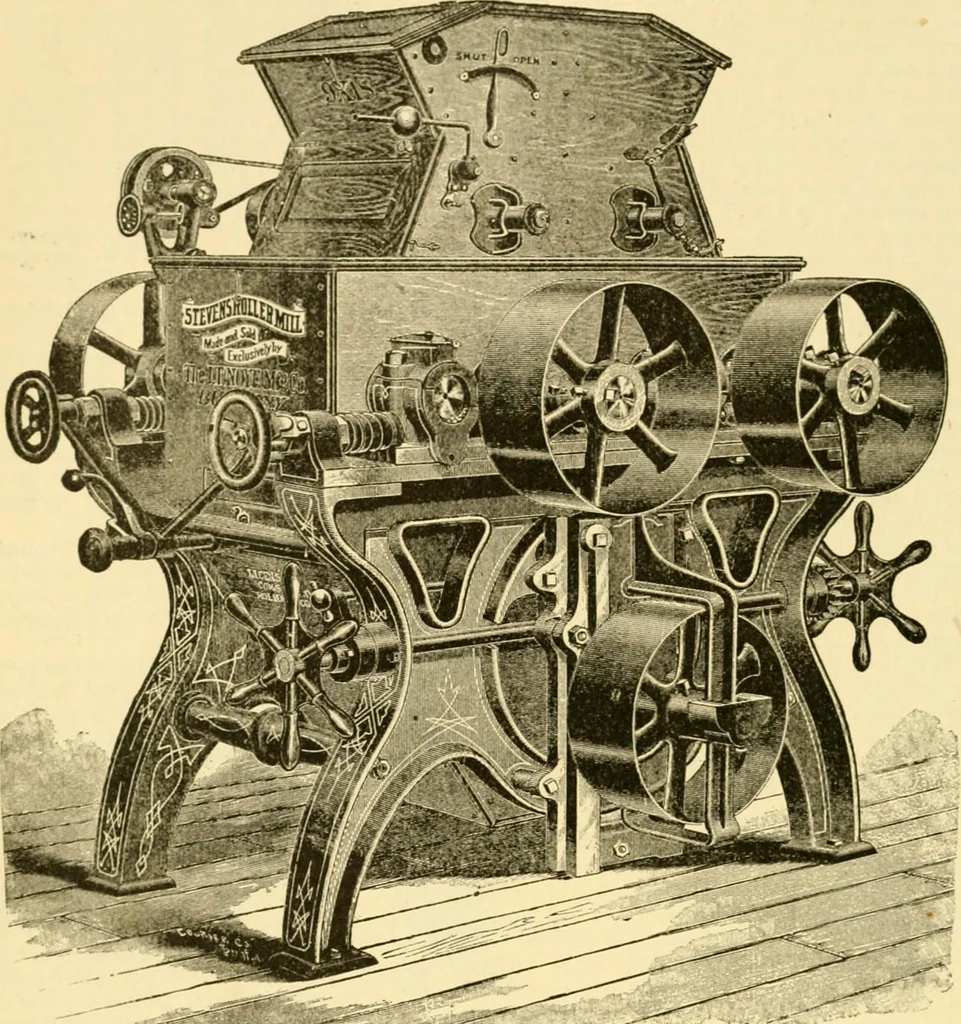

olted to arectans-ular bed or top. The rolls are mounted in boxes as shown, the two inside boxes beingrigidly fastened to the bed, the two outer ones sliding on finished surfaces, A V-shaped gib, 502 M1LL1^■G-MAC111^;EUY, (iUAIX. bolted to the bed. preserves the linear motion of the sliding-box.… … Fig. 4.—Stevens rolierniill. lugs are fitted threaded sleeves, through which the hand-wheel stem is passed. A hexagonhead on the outer end of this sleeve provides for turning it, and it is screwed firmly into thelug, so as to act as a stud for the spring-nut shown to work upon. The hand-wheel stem…
