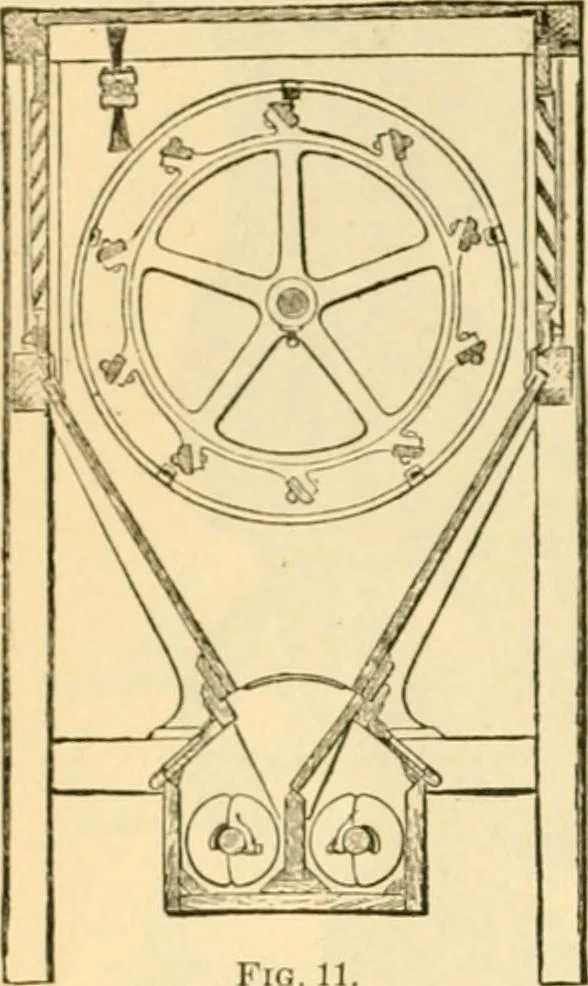

in. wide,and 5 ft. 3 in. high. The conveyers are placed side by side with partition between, as shown,to which the cut-ofE tongues are hinged, the latter extending up to the hoppering. Materialis directed into either convever by placing the tongues against either side of the hopper.With the… … Fig. 11.Centrifugal reel—cross section can be readily cleaned. In this class of inaciiines the speed of silk reel should not be so greatthat the material is held aijainst the cloth by the centrifufral force due the speed. The speed of beater-shiift is usually 10 or 12 times that of the silk reel,…
