Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 534

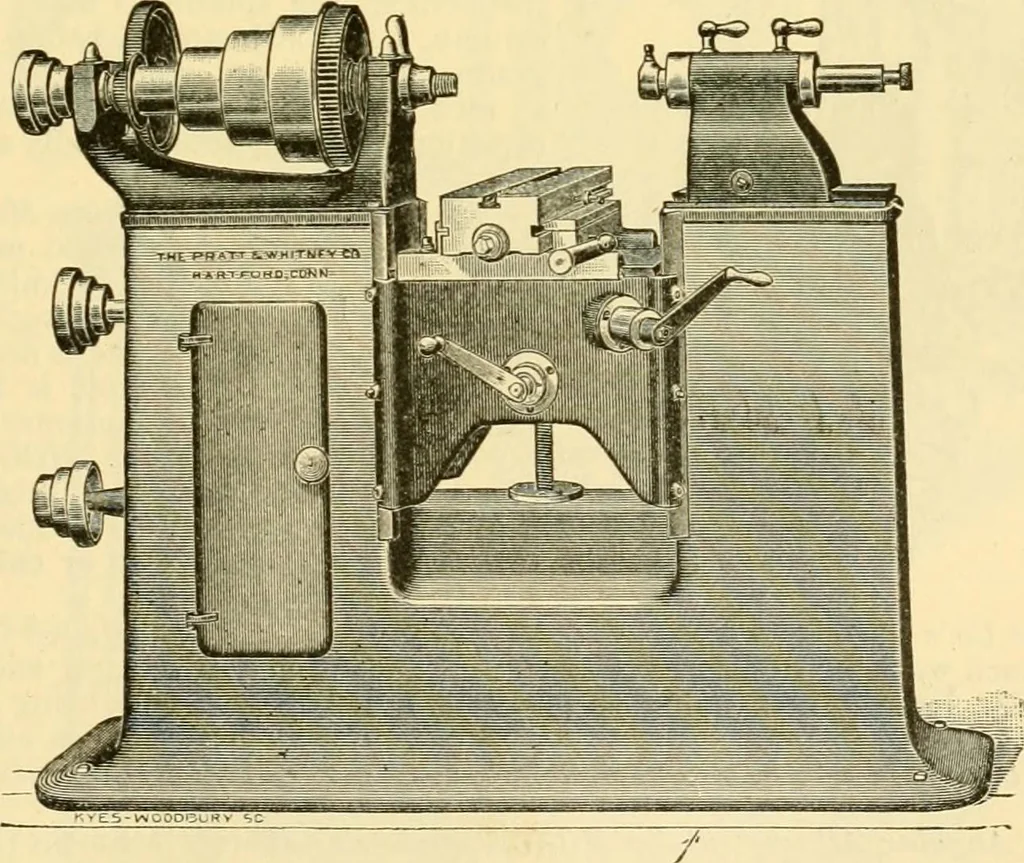

Fig. 3.—Horizontal milling-machine. Beaman & Smiths Horizontal Spindle 31illing-Machine (Fig. 3) is intended for long andheavy cuts, such as guide-bars, connecting-rods, key-seating shafting, axles to 10 in. diameter,etc. The table is 14 in, wide, has three T-slots, moves by a cut rack, and is… … Fig. 4.—Jlilling-machine. screw with graduated dial. The spindle runs in bronze bearings, is driven by a 3i-in. beltover a 16-in. pulley, through gearing in the ratio of 5 to 1, arranged for 4 speeds. Provisionis made for horizontal adjustment of cutters. The feed is actuated by means of a worm…
