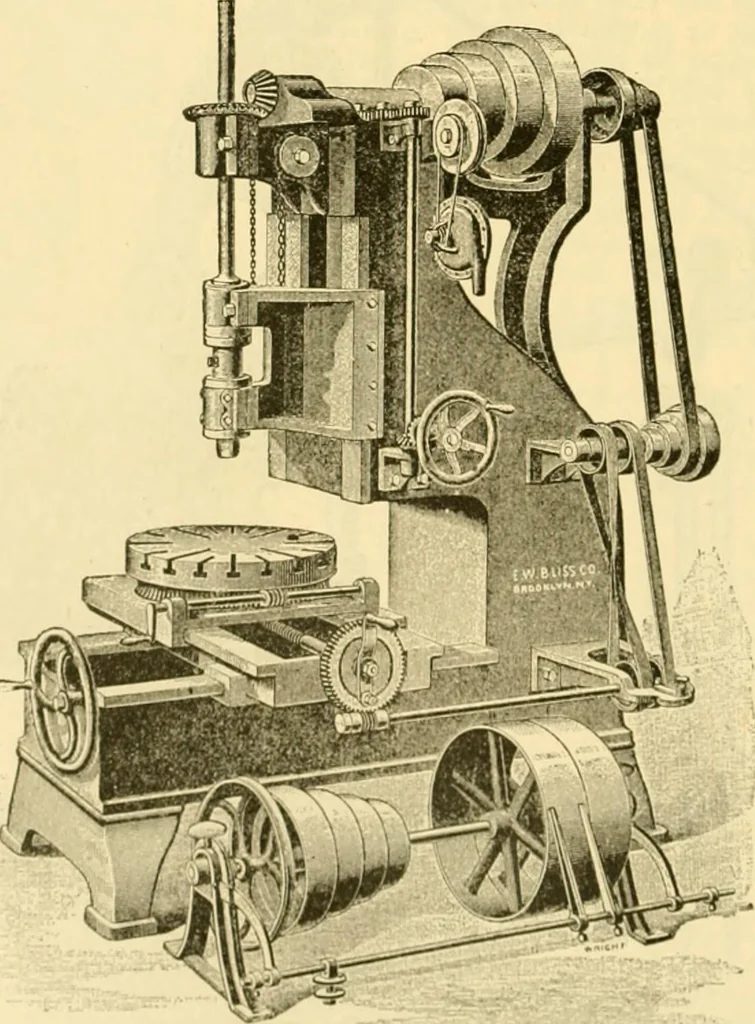

Fig. 8.—Vertical milling-machine. pinions until the millinij-cutter is over the ports as desirod, and are then fastened. The cross-head carrying the spindle-saddle is lowered similar to that of a planer, until the milling-cutter … Fio. 9.—Vertical niillinK-nincliine.is at tho requireil depth, and then securely fastened to the uprifjhts. The spindle is of steel,and runs in conieal bronze bearings with adjustment to compensate for wear, and is drivenby a cone. Tlie feed is autonuitic in either direction. MILLING-MACHINES. 513…
