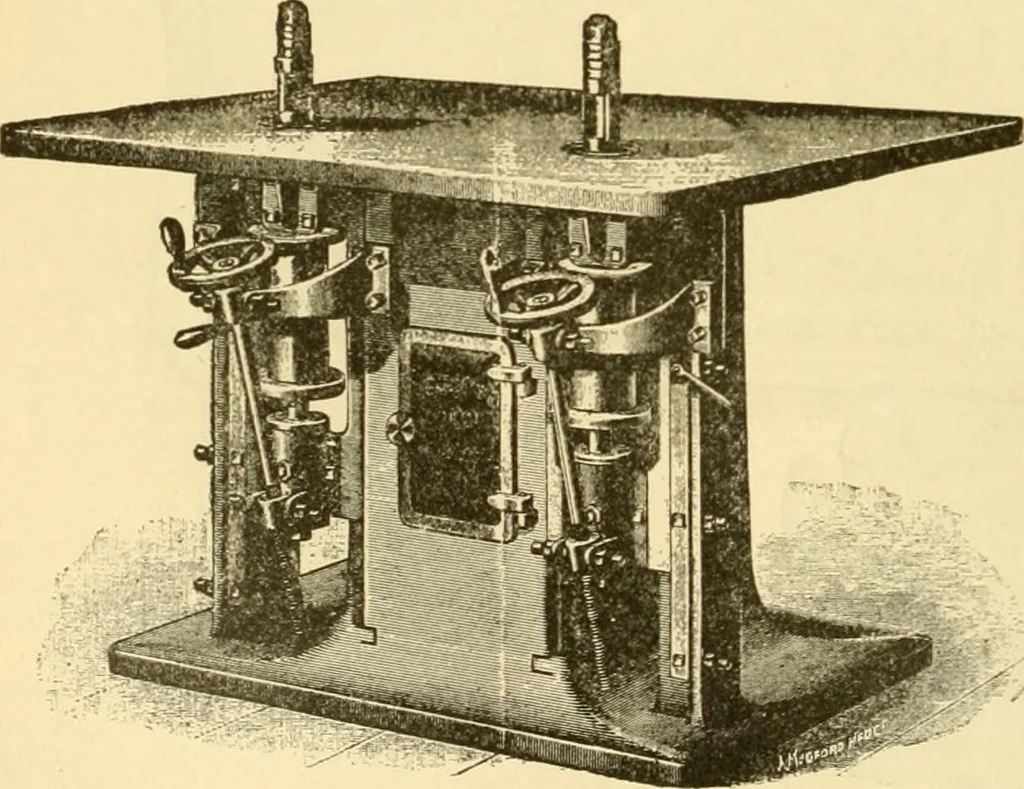

rs & Co., haasome very desirable feat-ures as a variety molder.There is a solid pedestalframe, having each side ofit a column or post ex-tending from the base tothe table of the machine.The yoke boxes are sup-ported by six posts and bythe pedestal, so that tliespindles are perfectlyaligned. The… … Fig. 3.—Rogers pedestal t^haper. moldi:ng machines. 531 4. is adapted to a wide range of worJi. but is especially fitted for making such moldings asextend around the backsand ends of sofas. Theieis a horizontal spindle,bearing fly cutters ateach end, those on oneend extending partlythrough a…
