Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 569

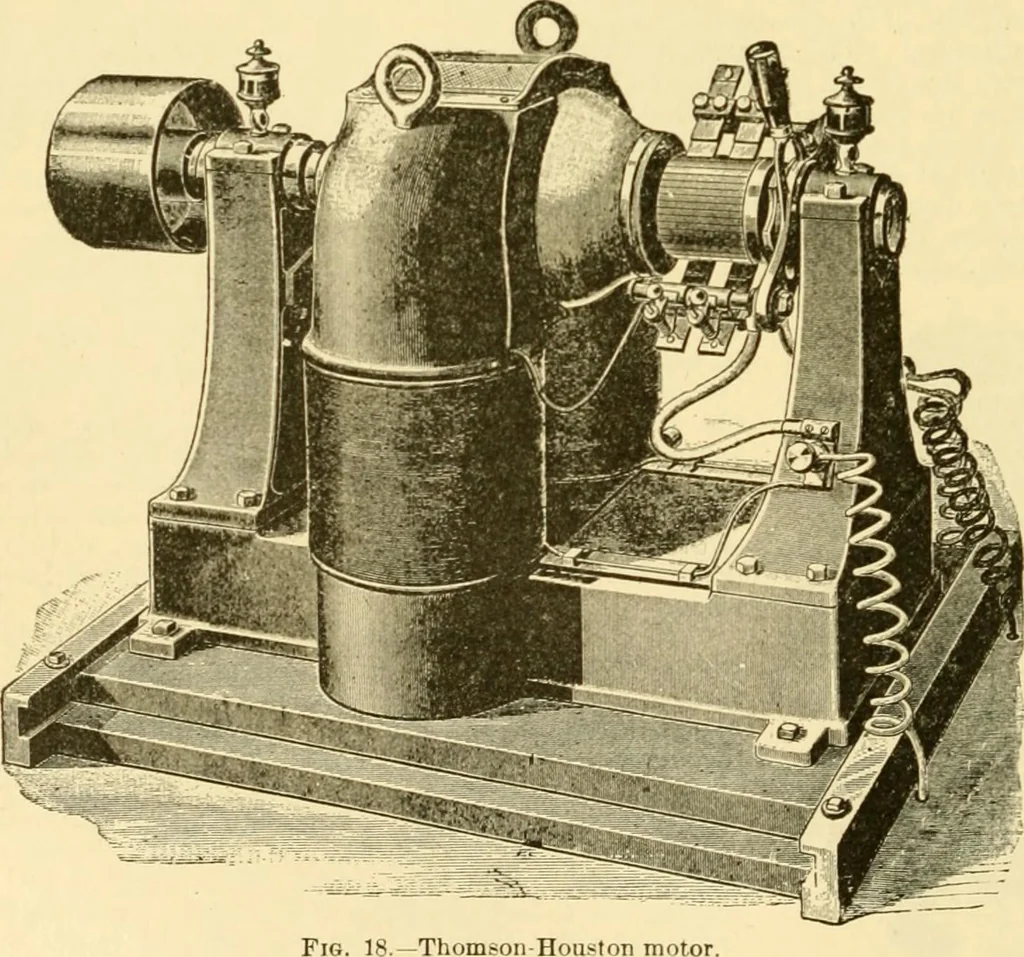

6.—Windinp Fig. 17.—C. & C. motor. change. As will be noted in Fig. 18, the poles of the field magnets—the bodies or cores ofwhich arc round in section—project upward and enclose the ai-matiire. tlie section of the coreof which is nearly s()uare. The winding of the armature is a modified… … Thomson-Hoa.«toTi motor. or local currents in the iron, and by internal resistance, is very light as compared with theoutput of the machine. The motor shown in Fig. 19 was designed by Mr. William Hochhausen to regulate andto keep a constant speed with a variable load, with fixed brushes and without…
