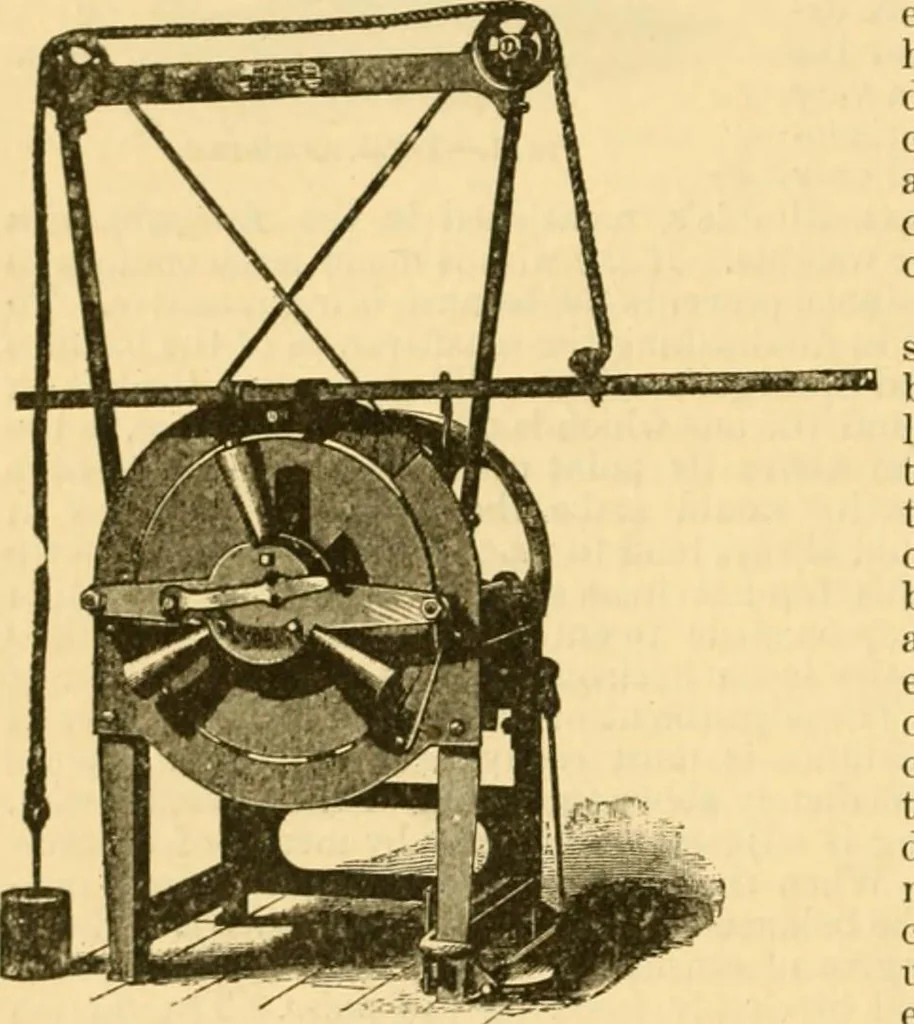

en slot in the rotating head while the ma-chine is in motion, firndy securing the end ofthe hoop to the head while coiling around thedisk. Each succeeding hoop is fed into themachine at the proper time to allow the pre-ceding loop to form a lap. A steel spring isused in binding the coil firmly… … Fig. 1.—Hoop-coilinp; machine. as guides in keeping the hoops snu sliding carriage which has an adjustable weight for giving pro[)er tension to the rollers fromthe face-plate. A three-armed spider back of the face-plate, with the arms projecting throughit, slides in a horizontal plane with the…
