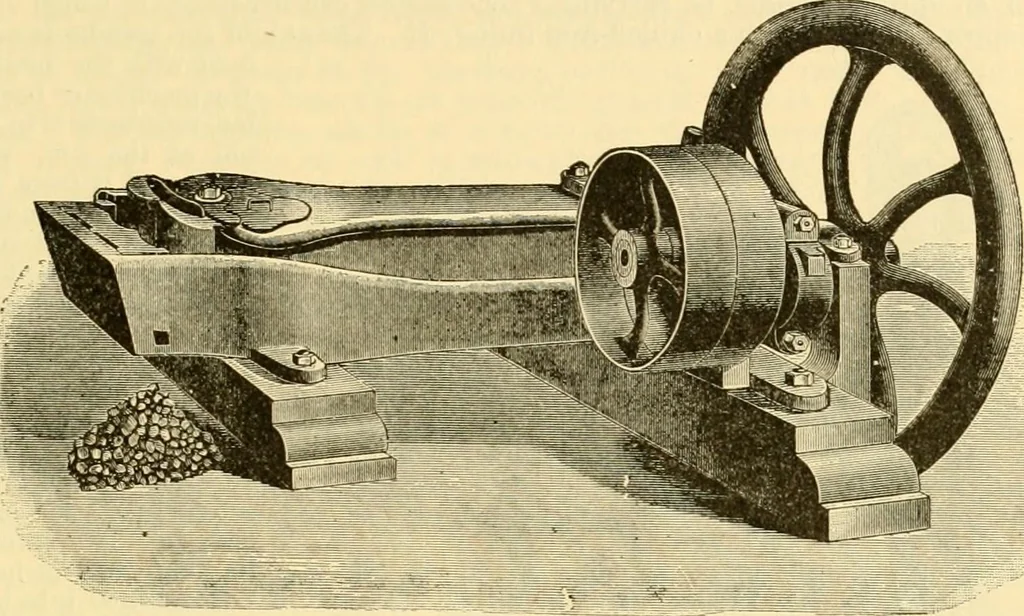

Jaw is pivoted at the top, as in the ordinary Blake crusher. It is claimed that greaterpower is gained by the pitman and lever construction of this machine, which is extensivelyused in England, but rarely, if at all, in this country. The Nichols Crusher is a machine of the jaw type in which the… … Fig. 4.—Forster crusher. cylinder in a rotary oscillating motion, which causes the cylinder to move slowly aroundwith each descending stroke of the jaw. The cylinder is prevented from moving back, asthe jaw ascends, by small balls, which are placed in each end of the cylinder and against…
