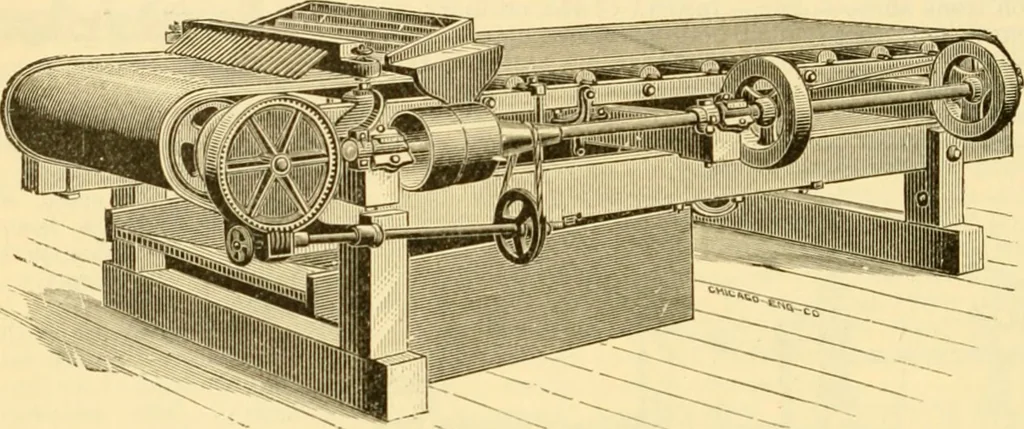

s very similar to the Frue vanner in construction and opera-tion, but the belt is given an end shake instead of a side shake. The Triumph Table is also a belt machine, resembling the Frue vanner and Embrey con-centrator, and, like the latter, the belt has an end shake. The Lurig Vanner is an… … Fig. (;. - FriK- vatiner. motion. The belt frame is supported at the rear end on a sliding bearing, and at the frontby a vertical eccentric shaft. By means of the eccentric a circular movement is imi)arted tothe forward part of the belt, which becomes approximately a simple back and forth throw…
