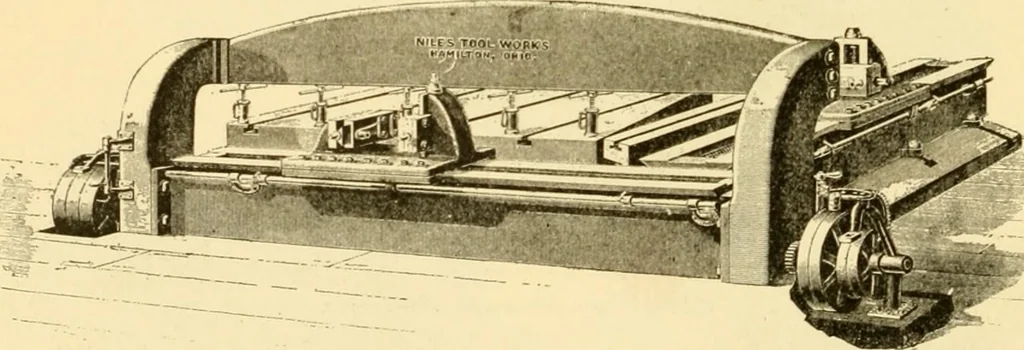

ed forshaping, and run with a 2-in. stroke, without shock or jar. Plate-planing Machines.—77/e Kiles Boiler-plate Planing Machine.—Fig. 5 shows aboiler-plate planing machine, made by the Niles Tool Works, Hamilton, 0. It will bevelthe edge and square up a narrow caulking surface, plane plates 14 to… … FiG. 6.—Double plate-planing machine. ates the saddle. Brackets extend out from the back of the bed. carrying rollers for sup-porting the sheet and facilitating handling. A heavy clamping bar holds the platesecurely in position. The bar is raised and lowered by screws at each end. No…
