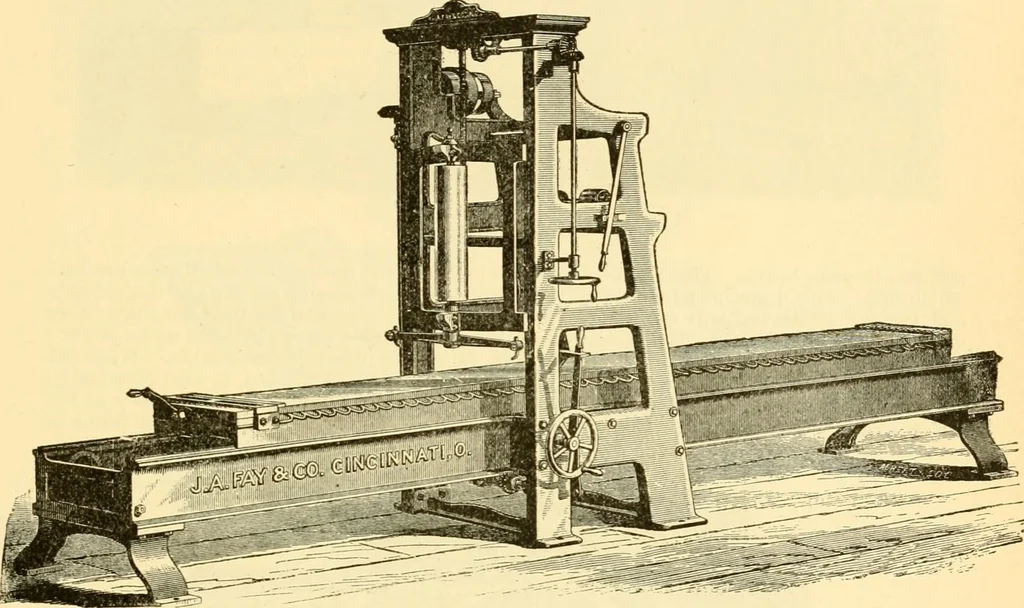

imension stuff or taking lumber out of wind. Thefeed rollers when not in use may be moved out of the way on planed slides. They are con-nected by expansion gearing, and will take in lumber up to 4 in. thick. When used for sur-face planing the table is placed with its end under the cylinder and… … Fig. ].—The Fay-Daniells planer. carriage is running in either direction. The vertical adjustment of the cutting cylinder issufficient to allow stuff up to 24 in. thick to be dressed. It will be observed that the featureof the Daniells planer which is retained is the moving carriage or platen ; the…
