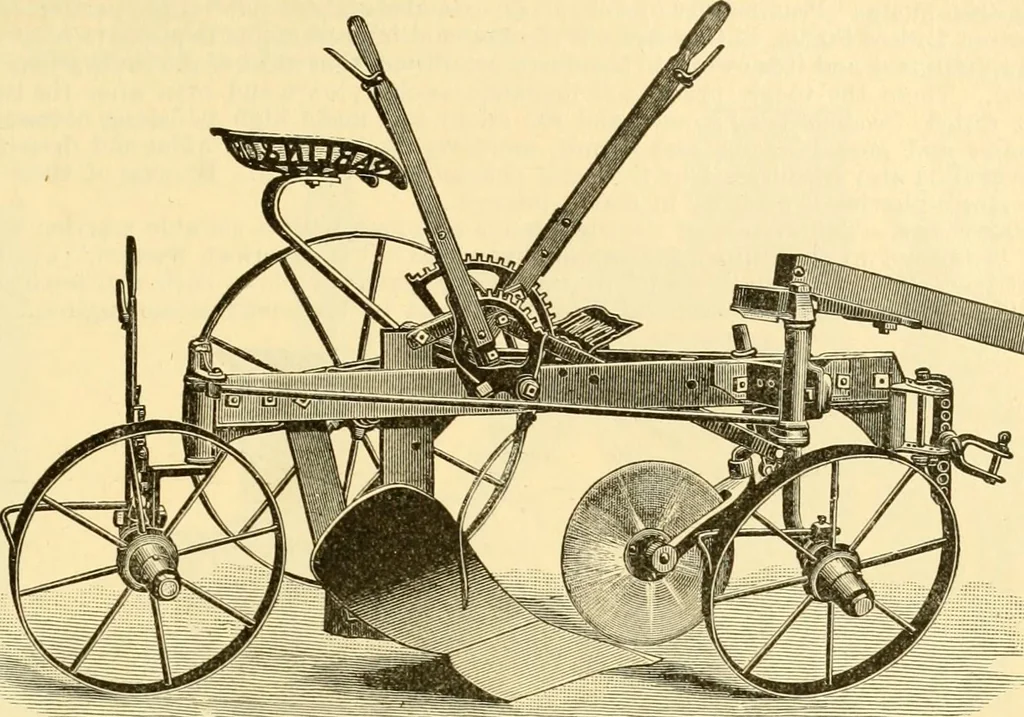

ever causes the draft by the team to run the plow out of the ground. The same lever con-trols depth of work and levels the run of the plow by means of the arched frame with doubleeccentric crank axles, so that when one wheel is raised the other is lowered, and the plow anddrivers seat can be kept… … Fig 6—The ( an ton tncycle plow plow bottom consists of but four pieces bolted together and rigidly braced, yet with few bolts.The. beam is adjustable at the butt in a slot, to control the amount of land taken, instead of
