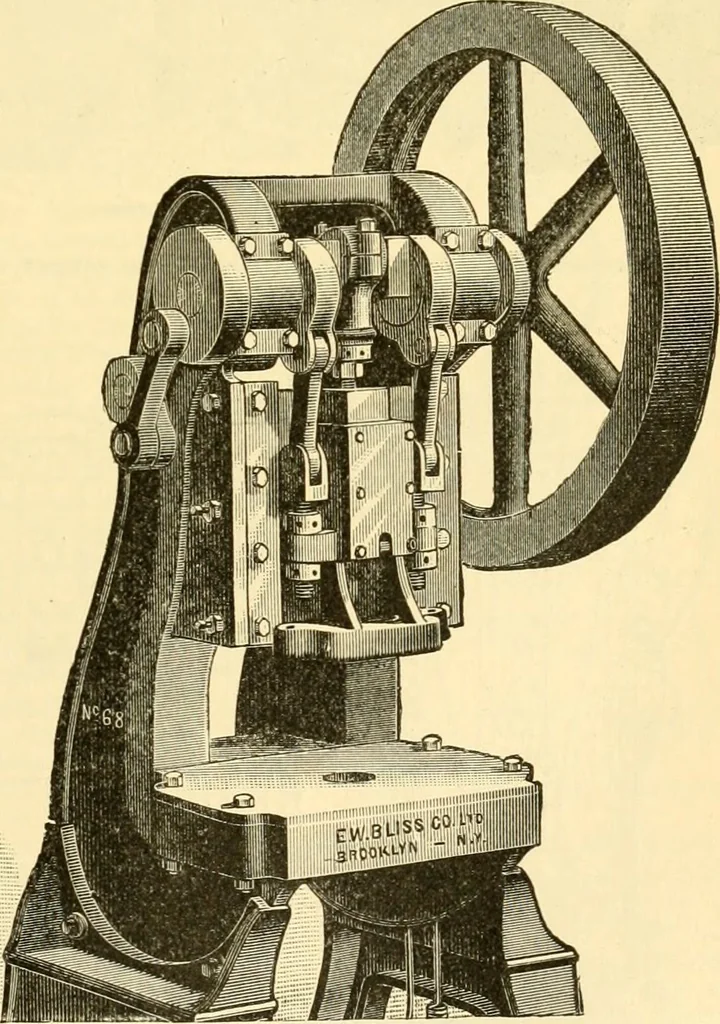

fewer wasters,greater durability, andless consumption ofpower, are the princi-pal advantages gainedthrough this togglemovement. ill DlGSSGS 01 tlliS tvpe made by the E. W. Bliss Co., of Brooklyn, N. Y., the main frame of the usual sizes ismade of a single casting. The main shaft is of forged steel,… … Fi&. 1.—Toggle drawing press. 666 PRESSES. DRAWING. left-hand ratchet collars for quickly adjusting same. The adjustment of the blank-holderis made by means of four steel screws. In the larger sizes, power is communicated to the back shaft through apowerful fIictionclutch, which, in con-nection…
