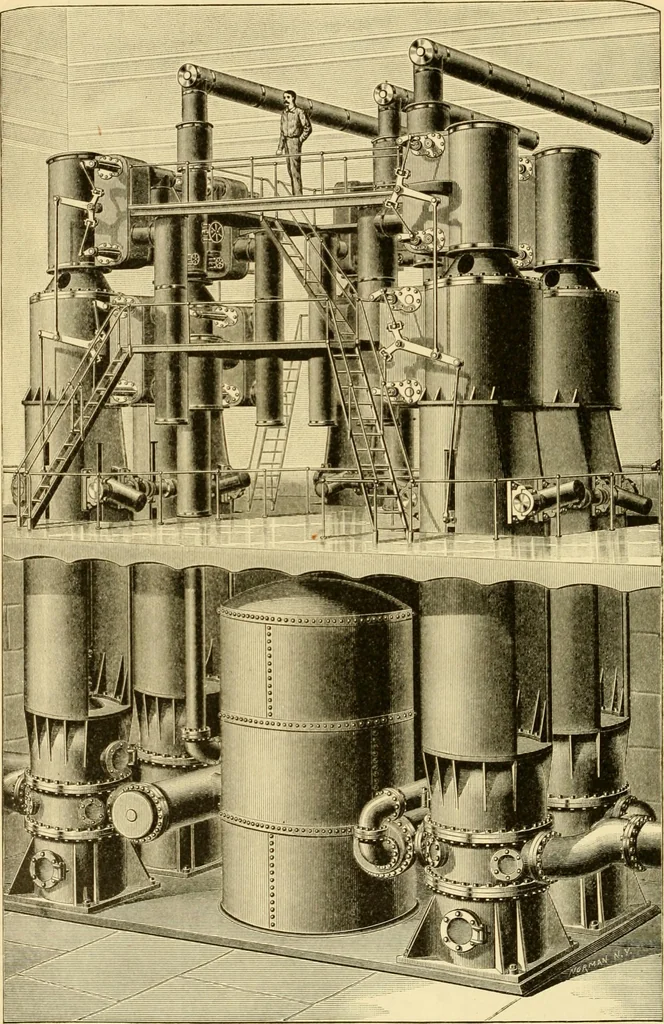

682 PUMPS, RECIPROCATING. being directly under them, and 60 in. diameter. The pump plungers are 27 in. diameter,and the stroke is 48 in. The valves are of the Corliss type, with a cut-off valve placed over … Fiti. a.—Worthington compound direct-acting pumping-engines. them, but are not, of course, worked by the Corliss valve motion, since the point of cut-off isfixed. The compensating cylinders are, on these engines, placed on the frame between the PUMPS, RECIPROCATING. 683 steam and water ends, their…
