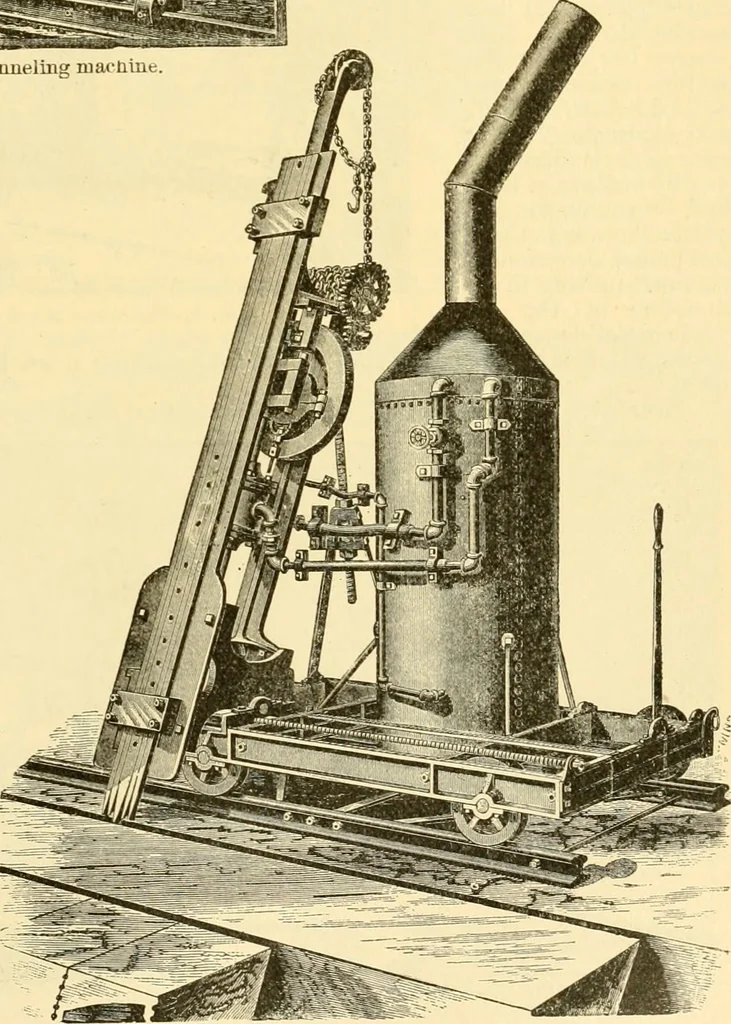

ls are attached rigidlyto the piston-rod ofthe engine. This chan-neler is also made onthe screw-frame patternwithout boiler, the steambeing supplied from astationary boiler throughflexible tubing. An in-dependent engine is usedto feetl the cairiage alongthe track ; thus the en-gine that does the… … Fig. 4.—The Wardwell chanuelmg machine. 702 QUARRYING MACHINERY. the carriage. The engine which carries the cutting tools has a valve movement which isoperated by bell-crank levers connected with the cross-head. Ihe cutting tools abut againstthe cross-head, and arc clamped by three siparato clamps.…
