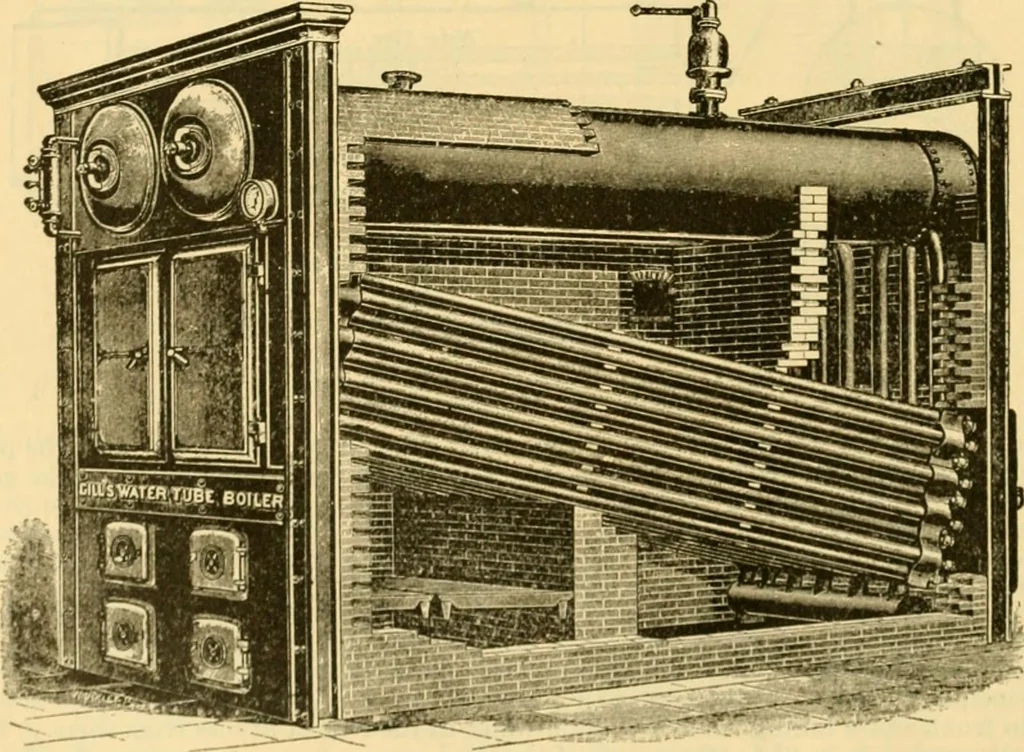

resulting in other types from brokenbolts in the headers. 8. The mode of setting practically prevents the flame or hot gasesfrom striking the riveted work of the shell, until their temperature has been reduced to about900° P.. or less. GiUa Wafer-Tube Boiler.—The Gill boiler. Fig. 10, is a… … Fio. 10.—The Gill boiler. the water-level is carried at or near the middle, and a bank of inclined tubes connected withheaders, which latter are connected liy circulating pipes to the drum. The (iill boiler dilTersfrom other iKiilcrs of this standard type merely in the details of con.^truction of…
