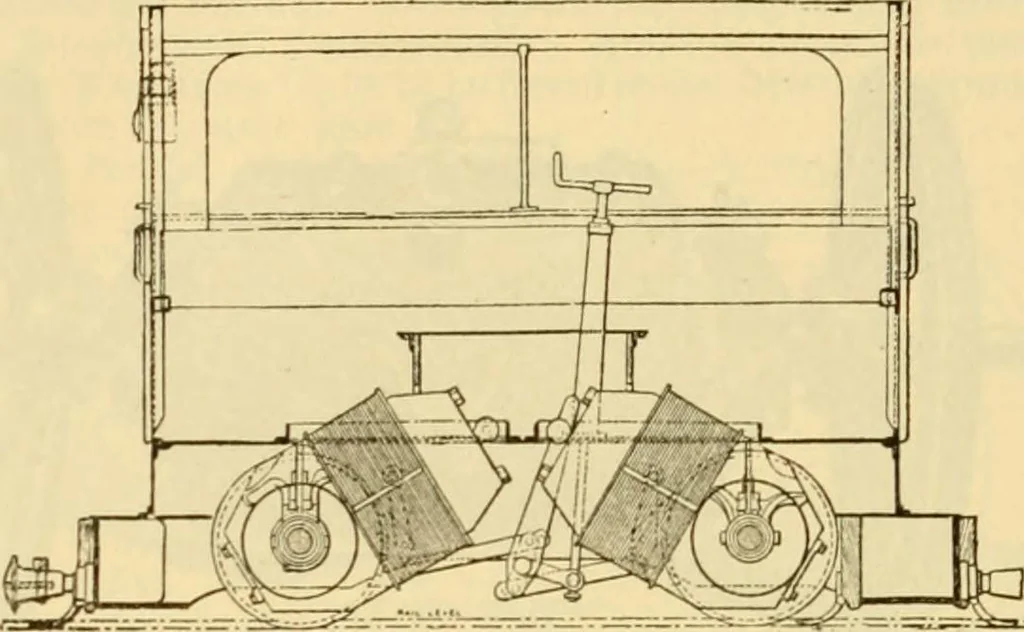

ive. A double arm, running outfrom the frame-work to the cross-girders of the truckmakes piovisionfor supporting theentire motor. A36-iLi. wheel is gen-erally employed,giving a clearanceof 5\ in. over thetrack. At a speedof 10 miles perhour, the armaturedrives a 36-iii. car-wheel 94 revolu-tions… … Fig. 20.—London undurirround railway motor.the locomotive to the mils, so completing the electrical the use of a motor not connected to the axle, but operating through the medium of a con-necting-rod. driven direct from a crank on the armature shaft. The motor is iron-clad andsingularly compact.…
