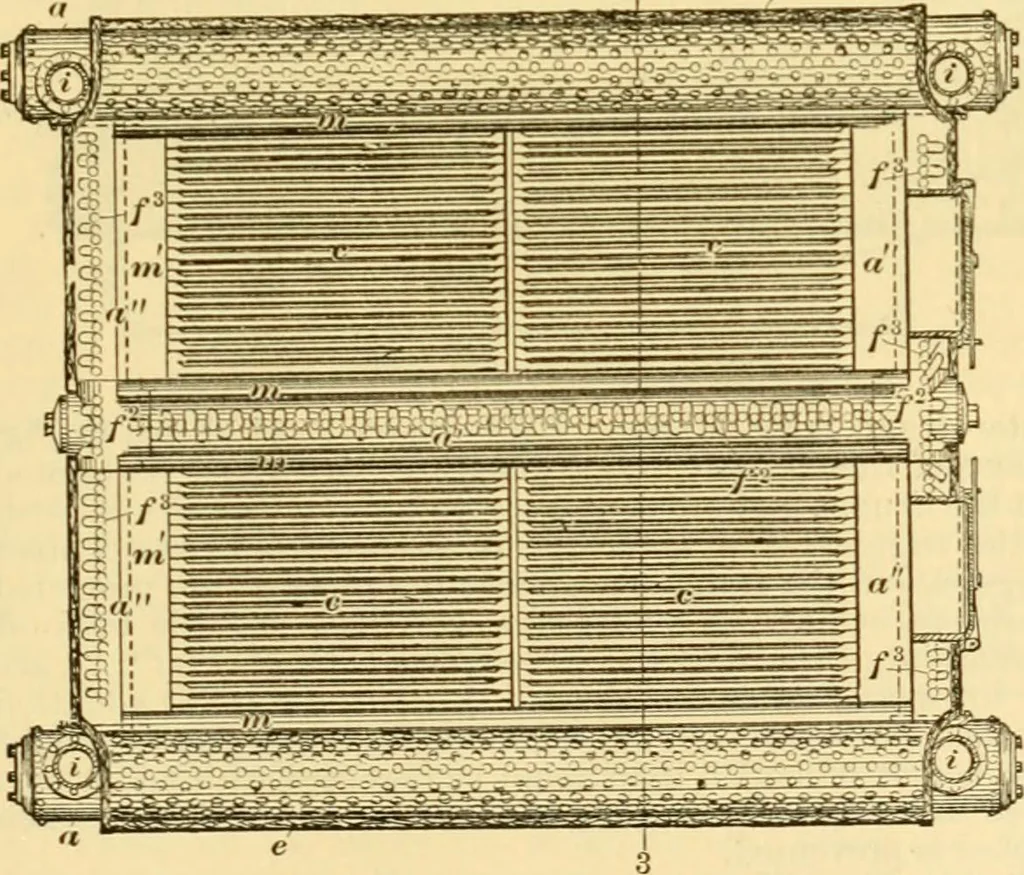

. To eiuible the pro-ducts of combustion to pass tothe outride of the tubes, a number of these tubes at the rear end of the furnace are madestraio-ht as shown at f\ in Figs. 14. 16, and 17, creating the spaces 10 between the tubes/and The intermediate tubes f. The spaces 10 permit the products of… … Fig. 15.—Tlie Mostier boiler. 64 BOILERS, STEAM.
