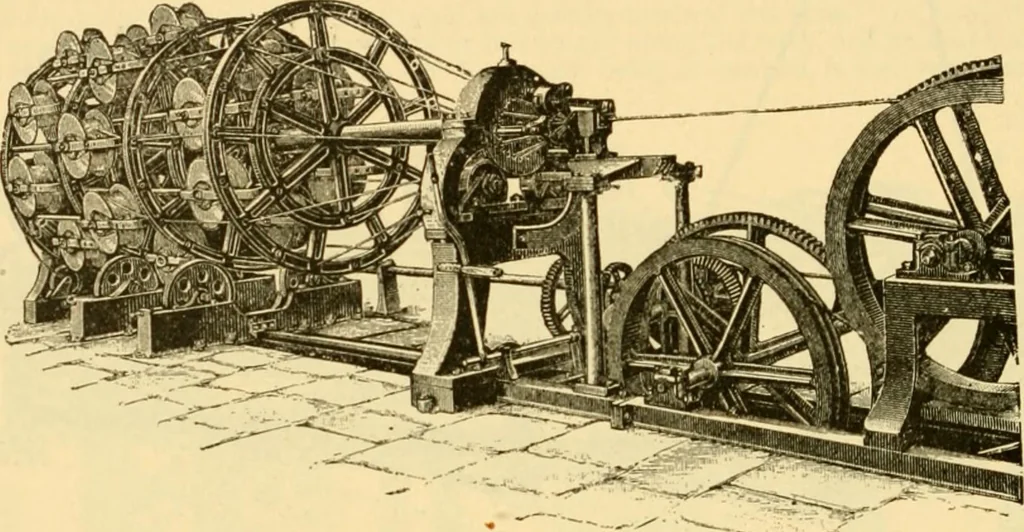

upon the boMiins sliown, or mounted in the flyers,carried by the circular frame, which is fixed to a horizontal shaft mountedin bearings, so as to be free to revolve through tlie intervention of appro-priate gearing. The outer ends of the wires are passed through apertures provided in theannular… … Fig. 13.—Wiie-Htraiidiui; niacliine. draw-off drums. The hempen or wire core is drawn in centrally from the back of the machinethrough the tubular horizontal shaft, and as the machine revolves and draws in the core, thewires are twisted spirally round the same. The tandem grouping or arraugeraent…
