Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 798

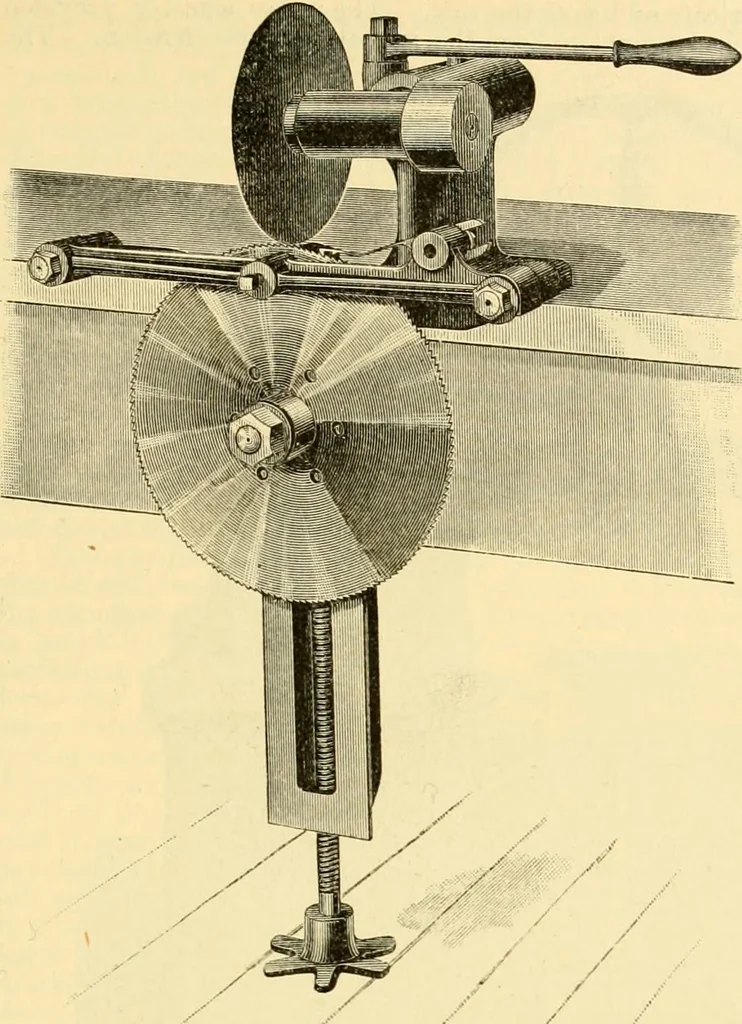

Fi(i. 4.—Culd saw cutting-ofl muchiue.macliine illustrated it may be raised to o ft. 6 in. The machine carries a 28-in. diameter SAWS, METAL WORKING. 769 … Fig. 5.—Saw grinder. ^Y>-C>VVVvV<rir saw, having a longitudinal trav-el of 16 in., and will cut solidsup to 8 in. thick. The saw issecured to the spindle by a flushside arrangement, while thedriving is by a type of gearingdispensing with the usual wormand worm-wheel. The feed…
Mechanical engineering
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
