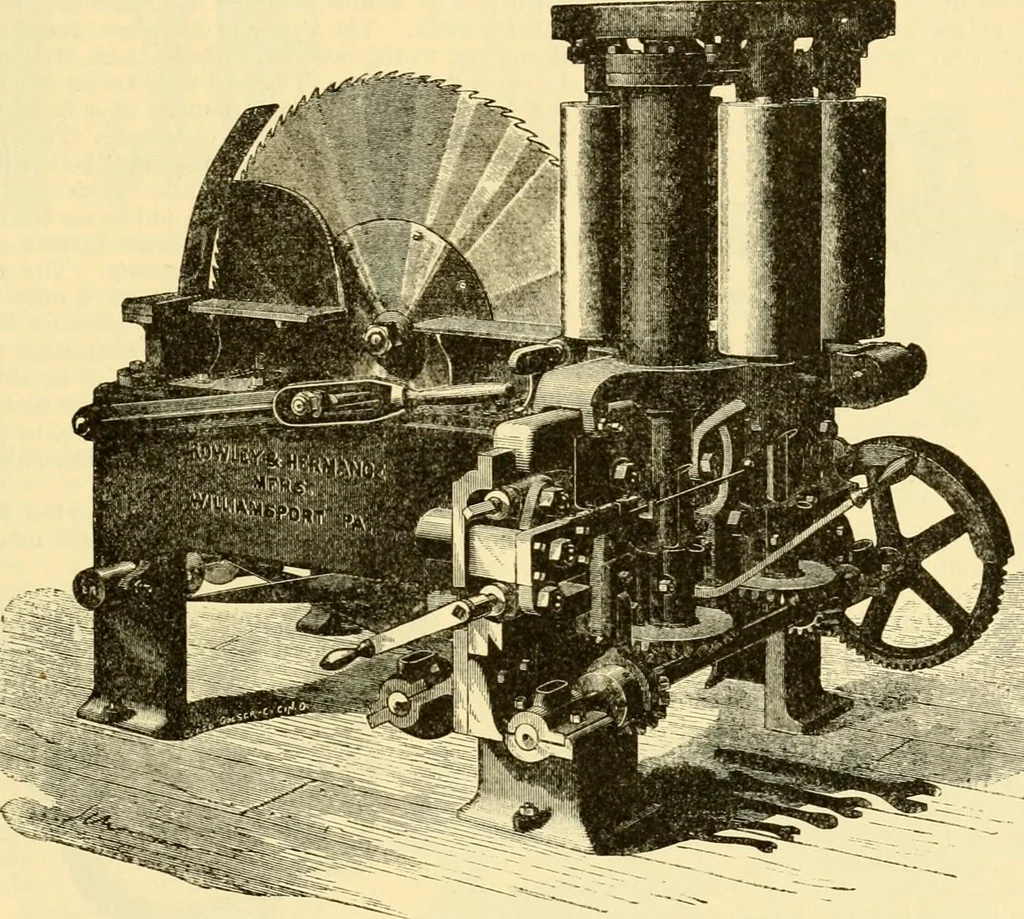

should be heavy enough toenable several logs at a time to be hauled into the second story of a mill building. One very well made log-jacker has an endless chain engaging with a pitch wheel and ashaft whicli is driven by spur and pinion, the shaft bearing this latter being driven by V-frictions from… … Fig. 2.—Resawing machine. which it is desired to move the log, by a friction device hauling on a chain. The upperend of the beam next the log is armed with teeth which engage the logs. A gauge-roll for board-sawing machines consists of a vertical roll on a horizontal bracket,which slides along a…
