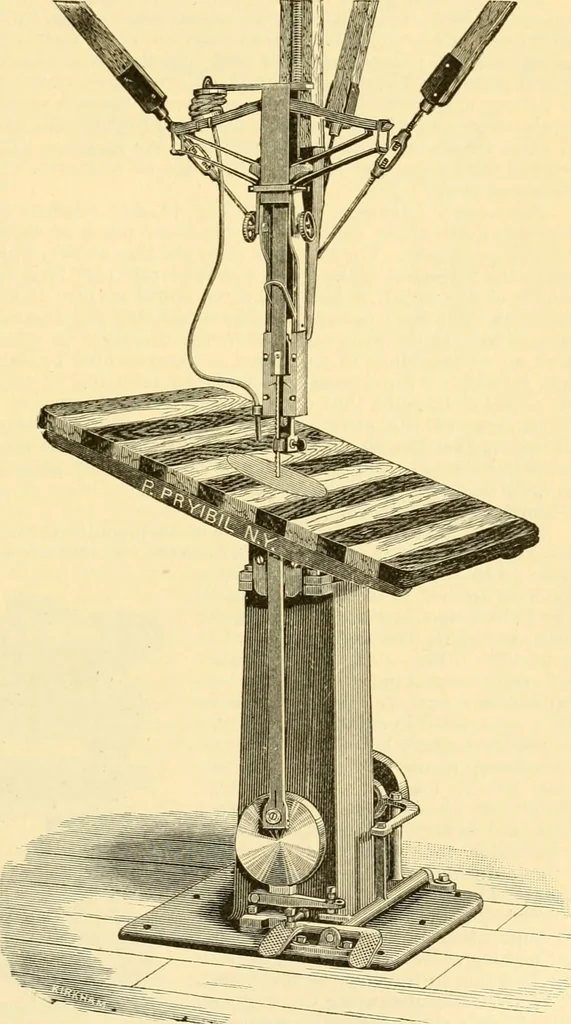

n a line at right angles to the sawteeth. On the front section of the table are mounted the feed works, consisting of four geared rollers having a gradu-ated friction feed, which may be varied at once from slow to fast. These feed rollers have lateral adjustment to suit the thickness to be cut. By… … Fig. 14.—Ji saw. 780 SCREW MACHINES. A band-saw guide. Fig. 12. made bv Goodell & Waters, has two side guides consisting ofmetal plates, which are adjustable for thickness of the blade, and a wheel with a backguide, the latter having a grooved or concave periphery, and being set on an angle so…
