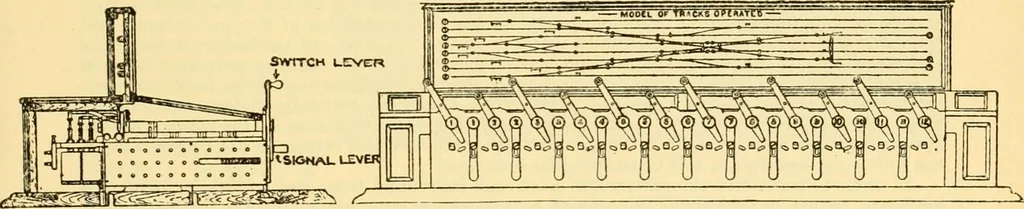

move, when, upon reaching its other position, it is again locked and thedetector bar lowered. This sequence of movement is necessary in order to be certain that ifa train were standing over a switch, the switch shall not be moved. The Westinghouse Pneumatic Interloclvu/ System is the application of… … Fig. 13.—The Westinghouse pneumatic interlocking system. the top of the machine, and which all incline to the left, are those used for operating theswitches. The vertical levei-s, which are placed just to the right of and below the switchhandles, are those which control the position of the signals.…
