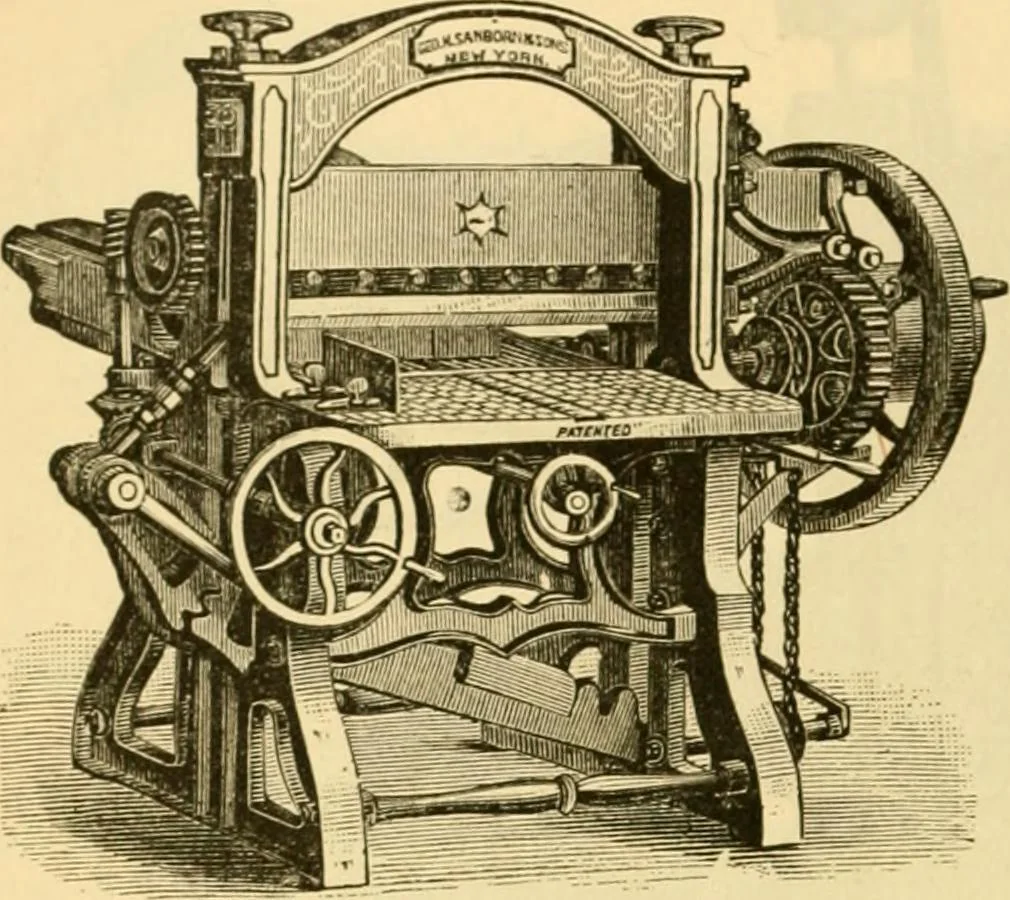

a degree asmay be desired. By this means the dies may be made to cut the bolt to the size needful tomake a tight or loose fit in the nut. The Merriman die is made of a plain piece of steel, milledor planed so as to leave a short nib or projection, under which the dog engages and liftsthe die from… … Fig. 1.—Star paper-cutter. that do not require so long dies. In operating the macliine the thread is out with four dies,which are fixed in the head upon a hollow shaft, and revolve around the bolt, which is heldstationary in a vise operated by a right and left screw on the shaft of the small…
