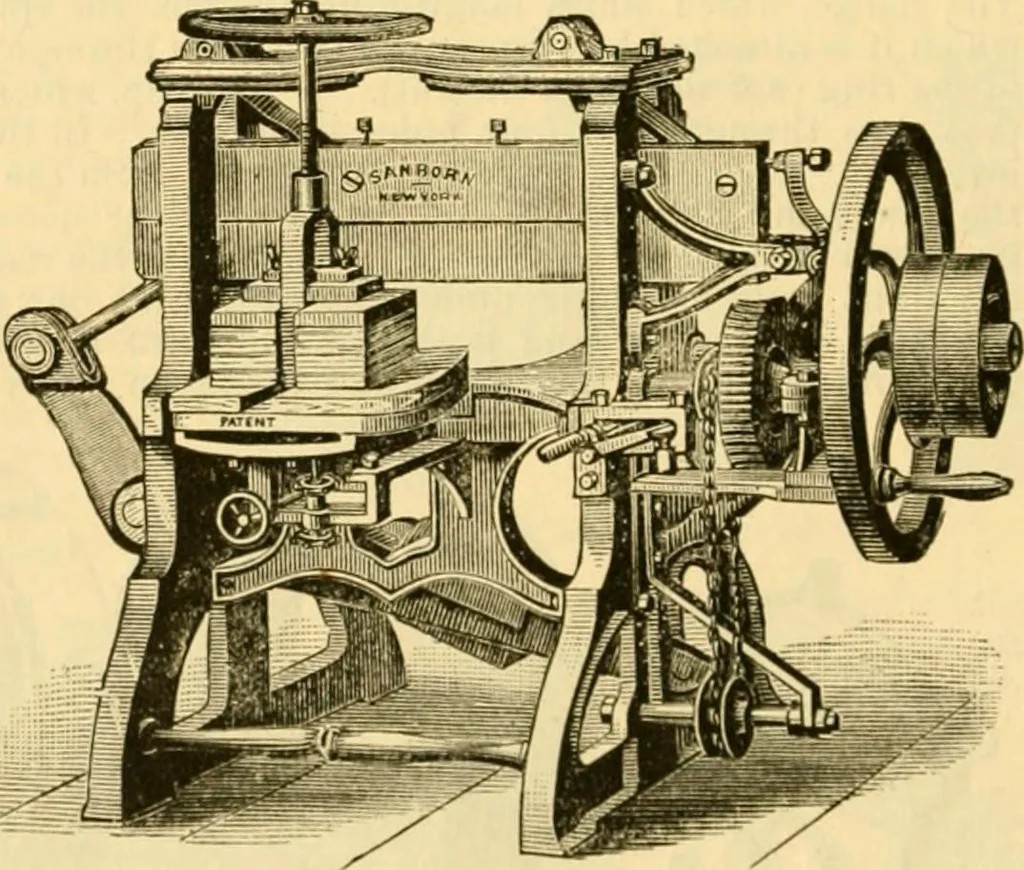

and keyed upon a Imrizontal auxiliaryshaft, said segment meshing with a pinion >ipon the end of a short vertical shaft; and i)ymeans of a loose pinion at the iqiper end of this vertical shaft working in a rack running inthe bed-plate, the knife-frame is o|)erated at the proper time. The shearing… … Fig. 2.—Star honlc-trimmer. BOOK-BINDING MACHINES. 73 and, the lever being pivoted centrally in the framing, oscillates at intervals and effects themovement of the knife. The Star Book-Trimmer manufactured by George 11. Sanborn & bons, of Jsew York, isshown in Fig. 2. The rotation of the table…
