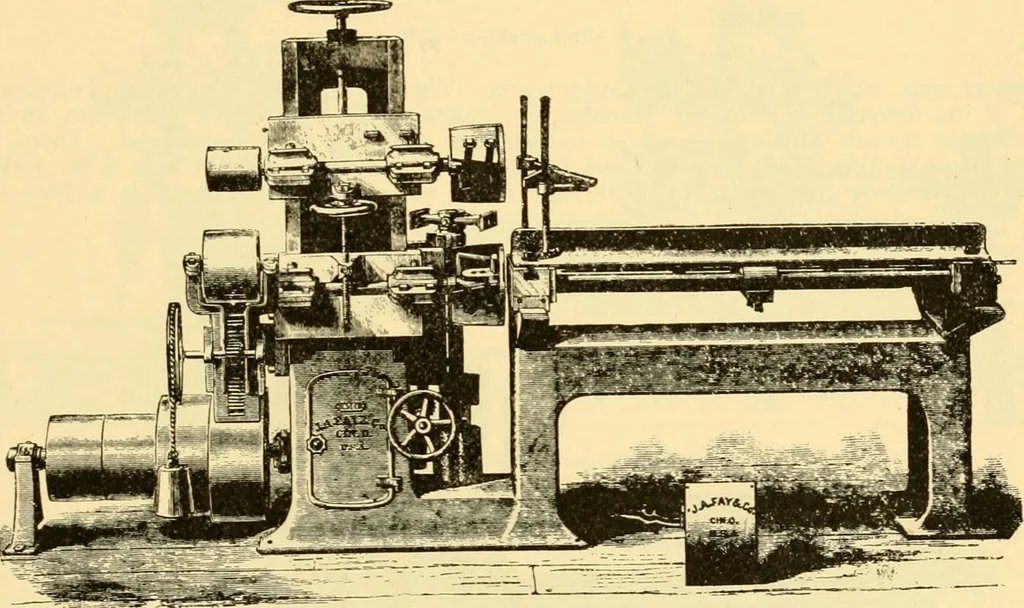

e material from one side to the other ; butfor double tenoning the materia! is cut away from the tenon left by the other cutters, by aseparate cutter-head rotating on a vertical axis. The vertical position of this cutter-headmay be varied to suit the thickness of tenon. In this machine the work is… … Fig. 1.—The Fay tenoning machine. which can be set to suit pieces of various lengths, and an adjustable fence and road for hold-ing the timbers in position. The heads have an adjustment for making the shoulder per-fectly square, or out of square, as desired. This machine is for ear work. A…
