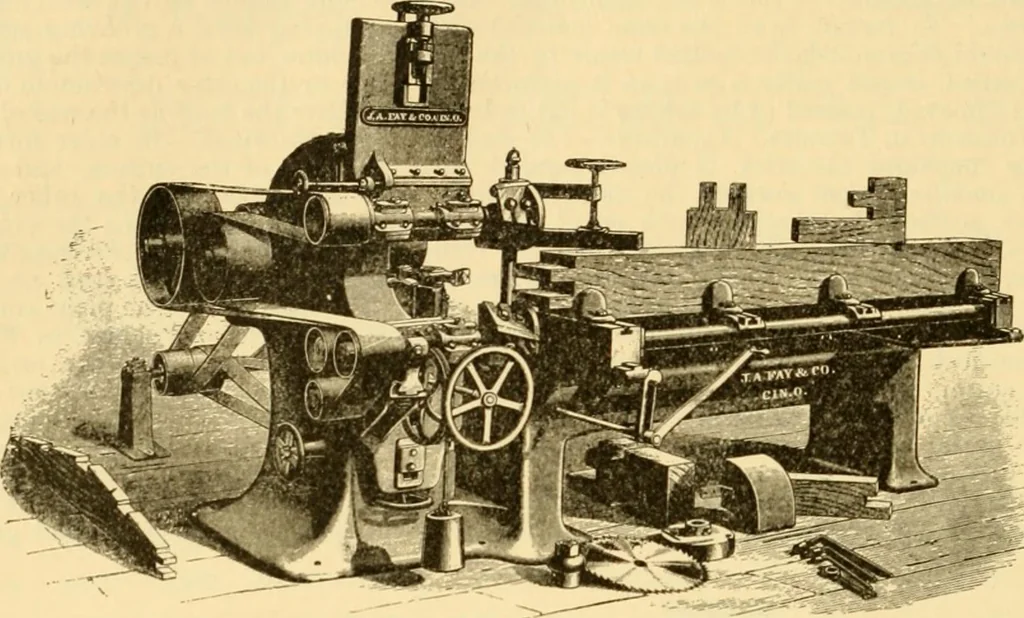

used for the samepurpose, if desired. There is a third head, which is upon a vertical axis, carrying a throating 854 TENONING MACHINES. cutter for making double tenons. In working with this machine, the timber is placed on thecarriage, which moves on rollers, and is passed between the tenoning… … Fig. 2.—Gap-tenoninp; machine of cutter used, whicii completes the double tenon. There is a special attachmont, independ-ent of the tenoning part of the machine, for cutting gains, of)erating upon the underside of the timber,which is placed on the carriage and passed over the heati There isused an…
