Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 886

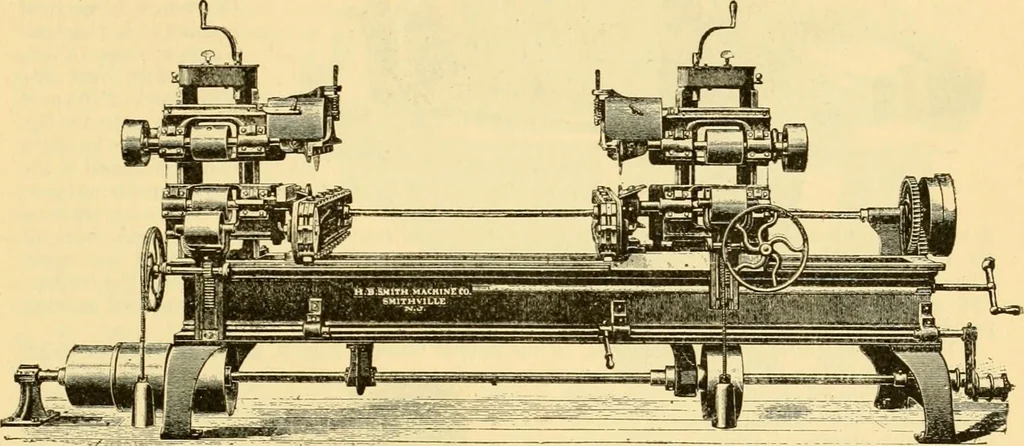

Fig. 4.—The Egan tenoner machine. … Fig. 5.—Double hand-tenoning machine. controlled by a lever handy to the operator. Suitable provision is made for varying the angleof the cut and the length of the tenon. Each mandrel and slide has separate adjustment upand down on the housings, to suit the thickness of the tenon : and the upper…
Mechanical engineering
