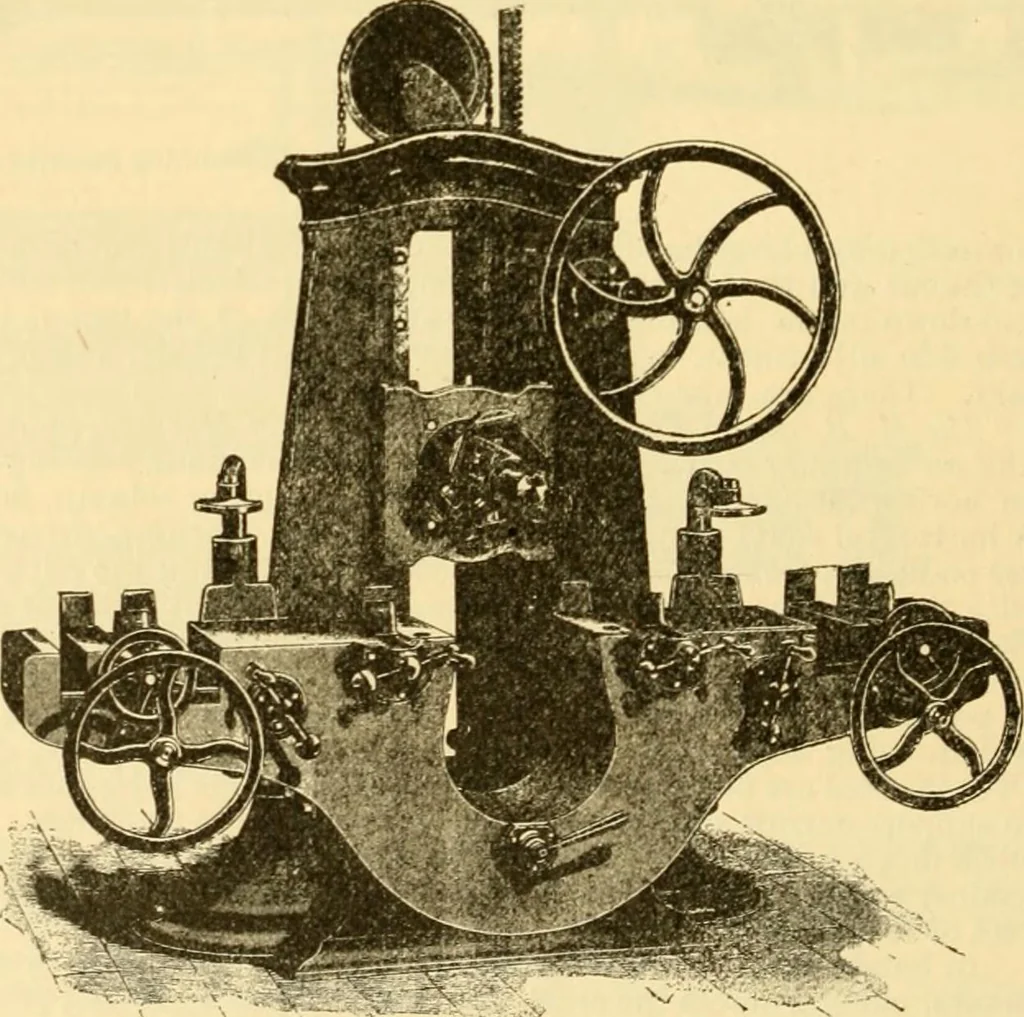

d from the back. Thesaddle carrying the cutter-head, which is counterbal-anced, is raised and loweredby a large hand wheel.Hand wheels in front movethe timber endwise, so as tobring the proper part of itslength in contact with thecutters. The head is broughtdown, cutting as it goes, andpassing into… … Fig. -The Rogers car-tenoning machine. There is a gauge by which the work may be set. The power TENONING MACHINES. 857
