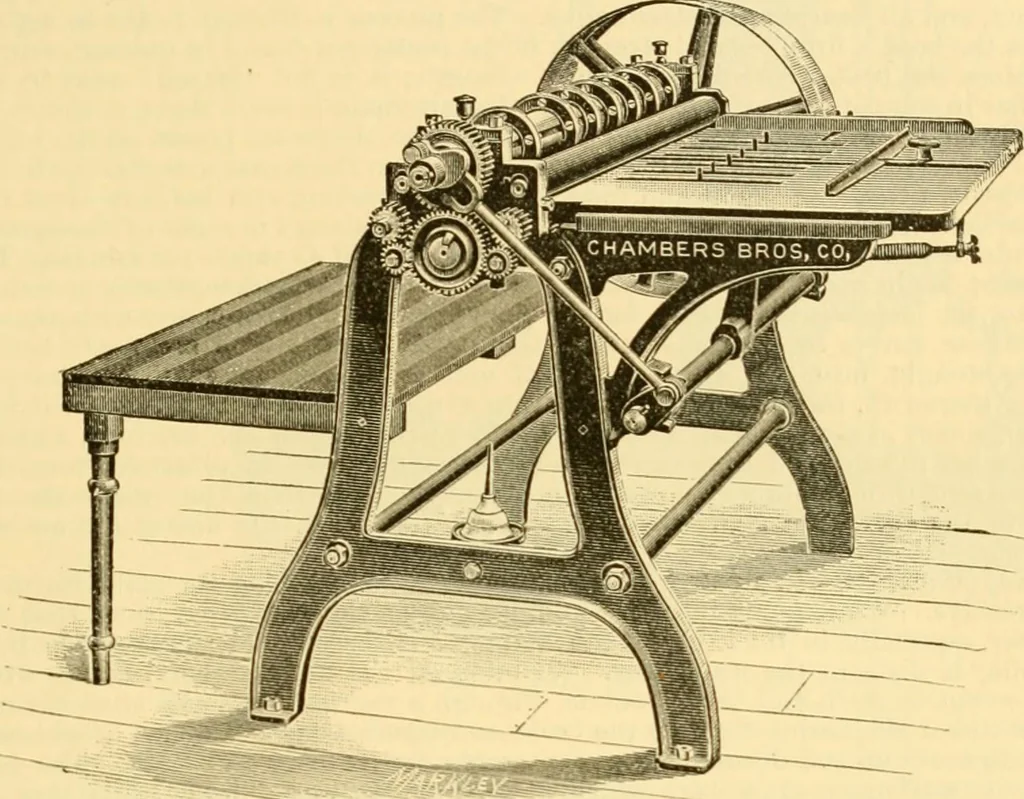

ion, withrests or dwells at either end of the stroke, may be made, thus enabling one crank to produceall the desirable movements. Cliamhers-Automatic Board-Cutter {¥ig. 4).—This machine makes 50 cuts per minute, andthe boards may vary in size from 8 in. X 5 in. to 9^ X 12+ in., one cut being made… … Fig. 4.—Chamberss boanl-cutter. square. When feeding whole V)oards or strips by hand, the feeding fingers are dropped belowthe table, out of the way. Tlie table is also furnished with adjustable side guides and hand-feeding device. The fee(ling-tal)le is stationary, and forms a part of the framing…
