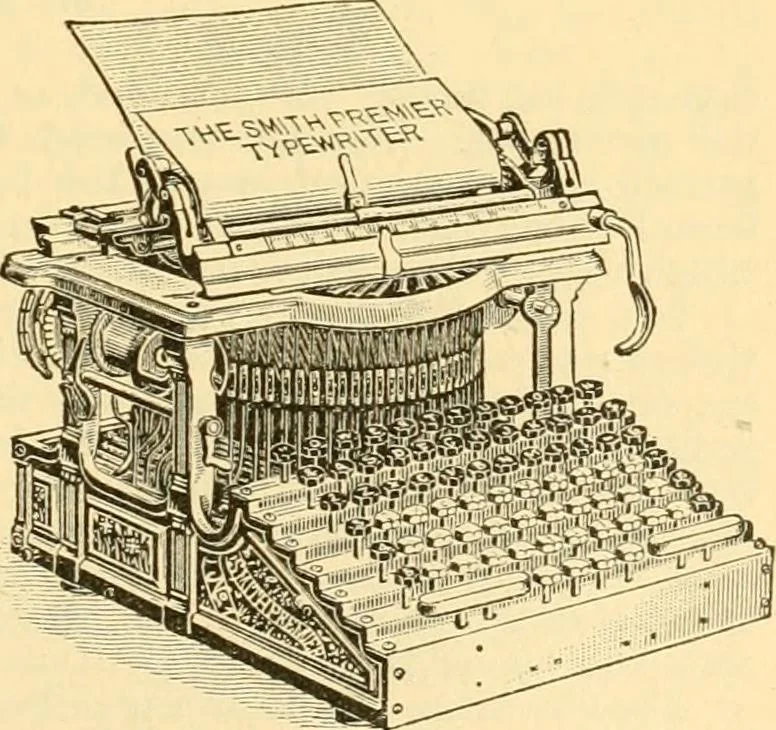

er-bar movement is used throughout the ma-chine. Connecting rods are attached to the otherend of the type-bar bearing, and thus the endsdraw against each other when the bar is in opera-tion. The key levers of this machine are entirelydifferent from what have been described. Circularbars, 76 in… … Fig. 3.-—Smith Premier machine. 880 TYPEWRITER OR WRITING MACHINES. stem to this bar. and the same kind of an arran^^t^mcnt is used for joining it to the connect-ing rods. These rocker-bar levers are arranged in 12 banks, with t liose of a bank directlyover each other. The keyboard consists of 70…
