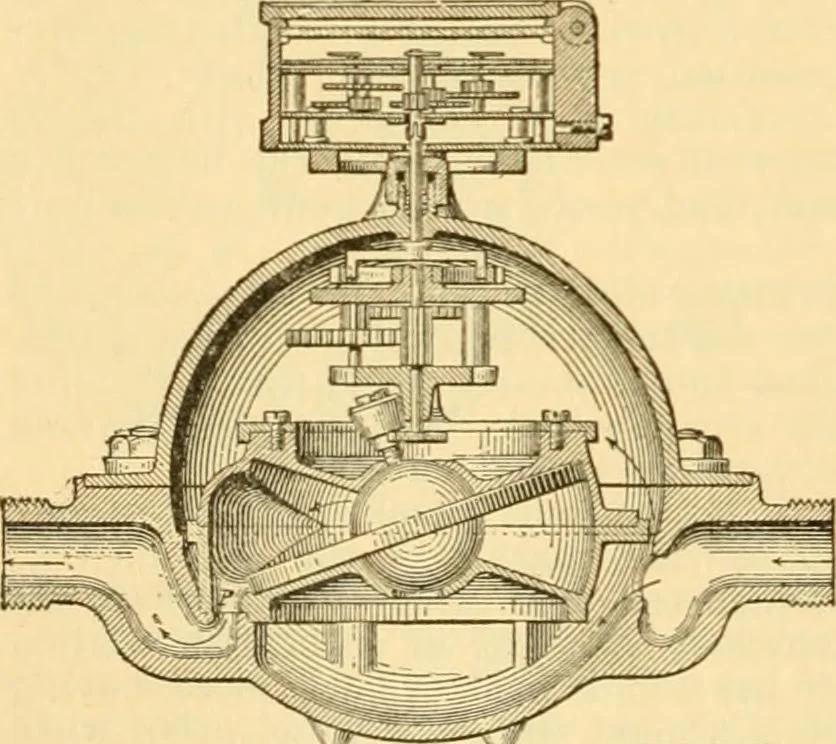

ring chamber (causing theoscillation of the disk), then through the outletport, to the outlet spud and the pipe. At allsections in this path, from the inlet to the outlet,the velocity of flow is nmch less than thatthrough the pipe. The oscillation of the disk produces in its central axis, at a… … Fig. 1.—Thomson water meter. WATER WHEELS. 891 the ball This roller impinges upon and rolls around the fixed conical stud or hub, formed onthe inner side of the ^ear frame. The roller turns upon a conical sleeve which is screwedupon the disk spindle; the object of this construction being to avoid…
