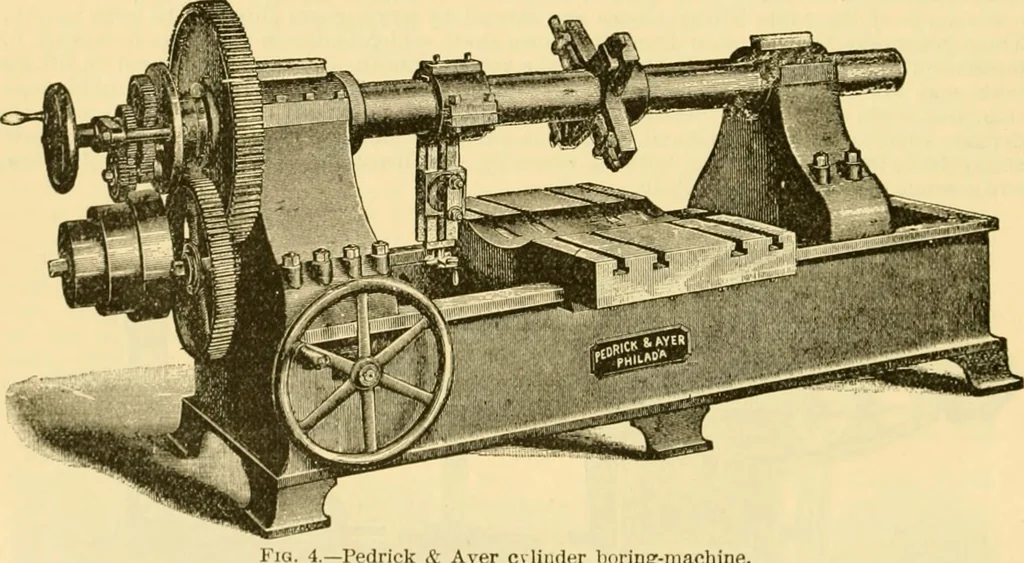

ail-bearing or back pedestal is taken awayand the cylinder is placed in position over the bar. The feed-casing is made to feed eitherway, and has two changes, to operate which it is only necessary to push in or f)ull out a pinin center of the hand-wheel. The facing-head can be readily placed on the… … Pedrick & Ayer cylinder boring-machine. experience the most desirable, as it distributes the stress or strain on the bar. The bed ismovable on the shears, and is easily set in position by the hand-wheel at the forward end ofthe iiiachine. Dupli.r. Boring-Macliine.—Pig. 5 shows a machine built…
