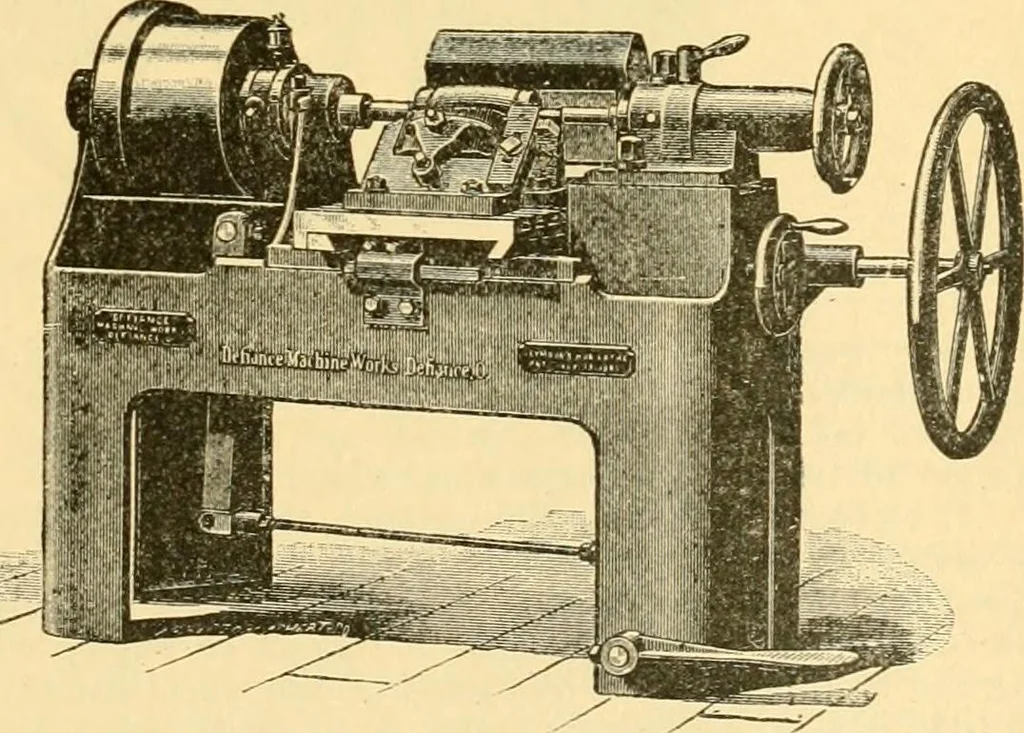

l, the roughingportions retreat and the fin-ishing knives come into play,the diameter to which they turnbeing regulated by screws at-tached to the carriage, so that,once adjusted, the machine turnsout hubs of only one finisheddiameter. The finishing knives are at the opposite side of the carriage… … Fig. 3.—Hub-turning and finishinn; machine. 913 WHEEL-MAKING MACHINES. ends ; these last beiriiC: in advance of the body and band knives. A single set of knives willturn and finish hubs of the same shape to any diameter within the machines capacity. Thefeed is by friction. The hub-borinf; machine…
