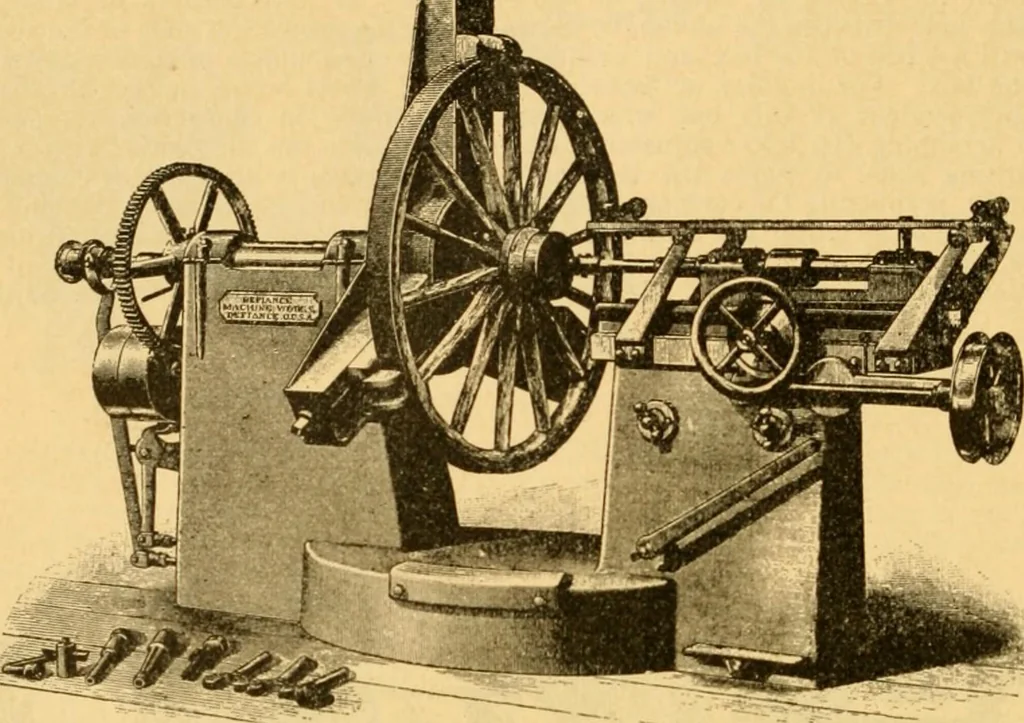

clamped at the rim while resting on planed plates, thussecuring a true position, being guided by three points of the rim. The wheel chuck has ahollow mandrel resting in two bearings, an adjustable rotating bearing being provided in itsrear, taking the weight of the chuck from its bearings. The… … Fig. 7.- Automatic wheel-boxing machine. by a treadle placed near the operators stand at the front of the machine by the shifter bar controlling the chuck belt. The Automatic Wheel-boxing Machine shown in Fig. 7 is for boring and finishmg the hole in a wagon hub for receiving theboxes, doing this…
