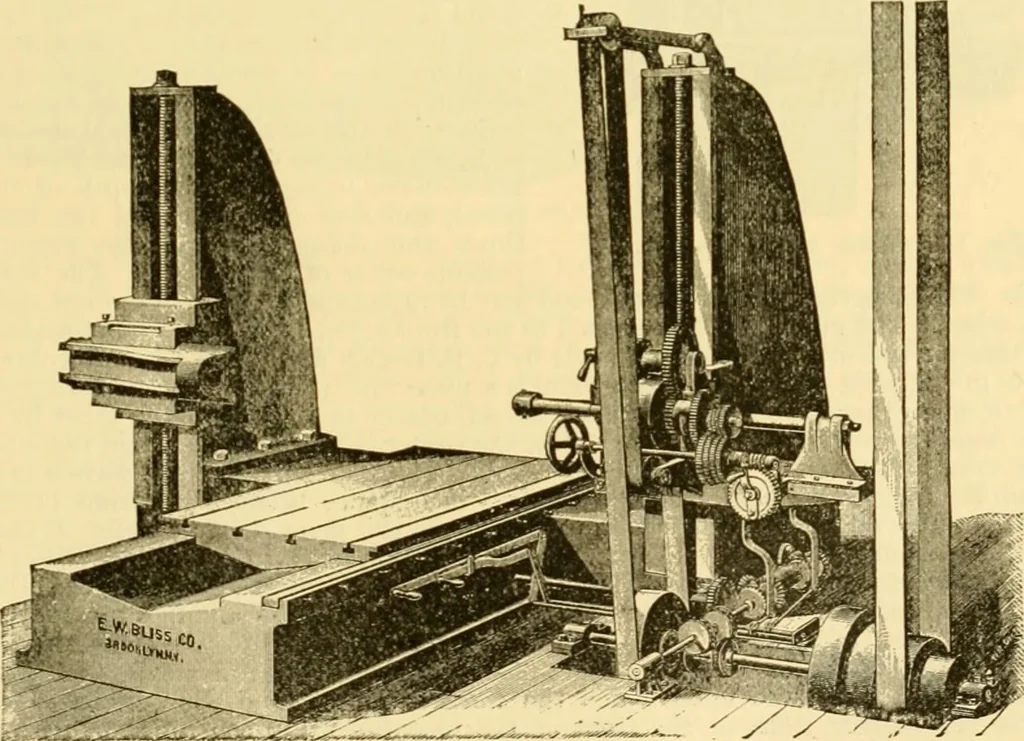

Chord boring-machine. Fig; 10 shows a horizontal boring-mill built by the E. W. Bliss Co., Brooklyn, N. Y. Thismachine is especially designed for heavy work, though convenient for general shop use. Byits use holes may be bored parallel to each other without resetting the work or traveling same … Fig. 10.—Blis.s boring-machine. during the process of boring. The table is moved to bring the work in position by a rack andpinion driven by power. The spindle carrving the boring-bar is of steel, 3^ in. in diameter,and has a longitudinal feed of 30 in. It is carried by a head with 60 in. vertical…
