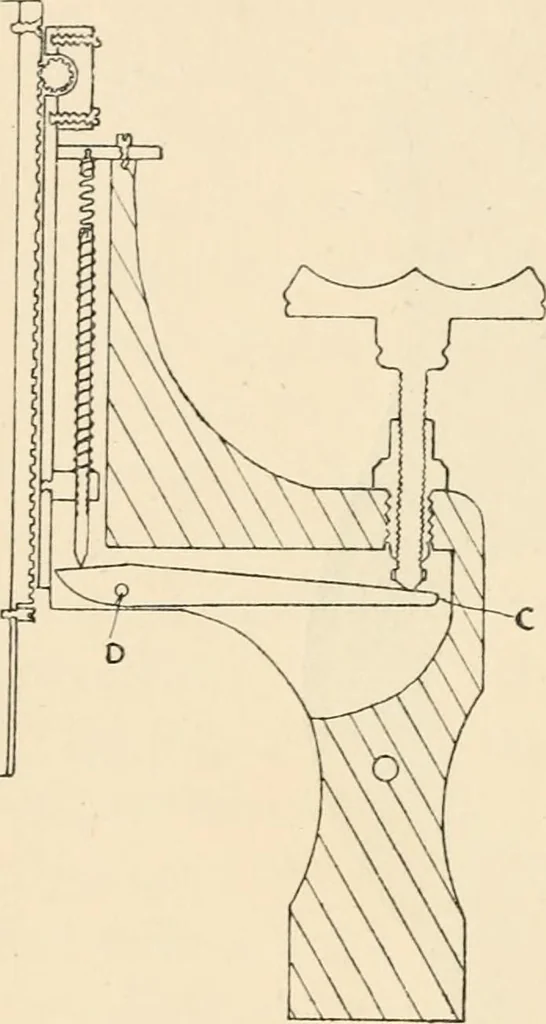

nt. There isalso a very simple means of adjustment provided for taking upany slackness through wear. The slide in which the fine adjust-ment is fitted has slots, to which are fitted screws (shown inFig. 6, p. 21, marked A). By turning these screws slightly,the spring-fitting grips the bearing-part… … Fig. 9. — Section of Limb,showing Construction ofLever Fine Adjustment,etc. C, lever ; D, fulcrum of leverof fine adjustment. THE MICROSCOPE-STAND 25
