Modern painting, hardwood finishing and sign writing (1918)
Armstrong, George D, Hodgson, Frederick Thomas, 1836-1919, Delamotte, Frances George · Chicago, Ill., F. J. Drake, expressly for Sears, Roebuck · leaf 494

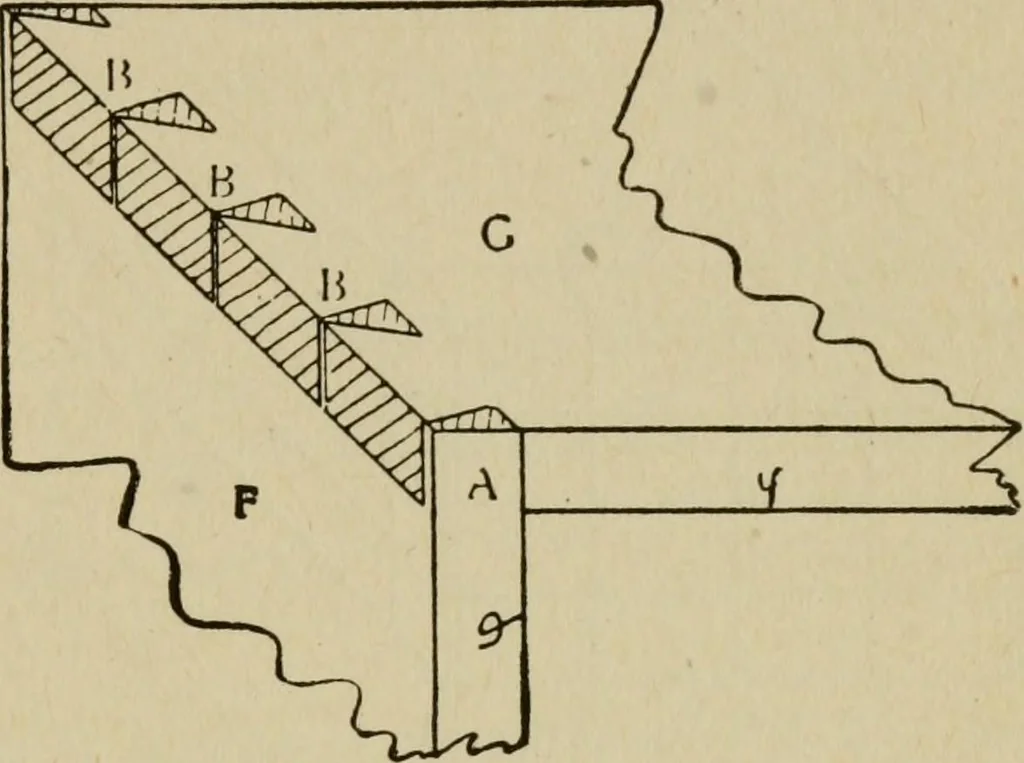

wood is to space them not lessthan i^in., or more than 2^in., from center to center;for hard wood, or for small work in thin wood, theyshould be spaced closer still. In setting out the pins, or rather the mortises inwhich the pins have to fit, a half dovetail should beplaced at both top and bottom,… … Fig. 10 strength, then tails of the shape shown in Fig. ii,should be used. The bevels of the tails should be as shown in thedrawings, and in no case should they be shaped as at,M, Fjg. 14. 1£made like that,there would begreat danger ofthe sides split-ting off at E,and althoughthis shape atfirst…
Painting, Industrial · Wood finishing · Lettering
