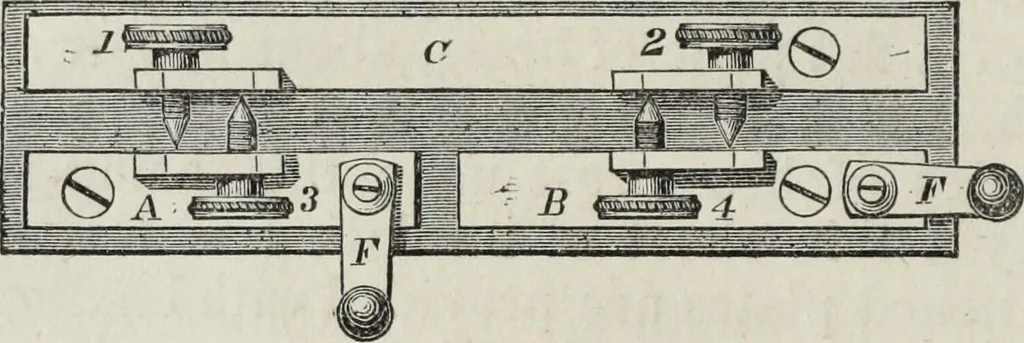

on.The manner in which the arrester is connected with thewires leading into an office will be seen by reference tofig. 18, where the two line wires, L and L, are attachedto the two upper plates of the arrester, X, while a wireleading to the ground at Gr is attached to the lower plate. 72. Bradleys… … Fig. 25. It depends for its action upon the well ascertainedfact that lightning always passes from a point to a platewith great facility. The line wires leading into theoffice are attached to the metallic plates A and B bymeans of binding screws beneath, the ground wire beingattached in the same…
