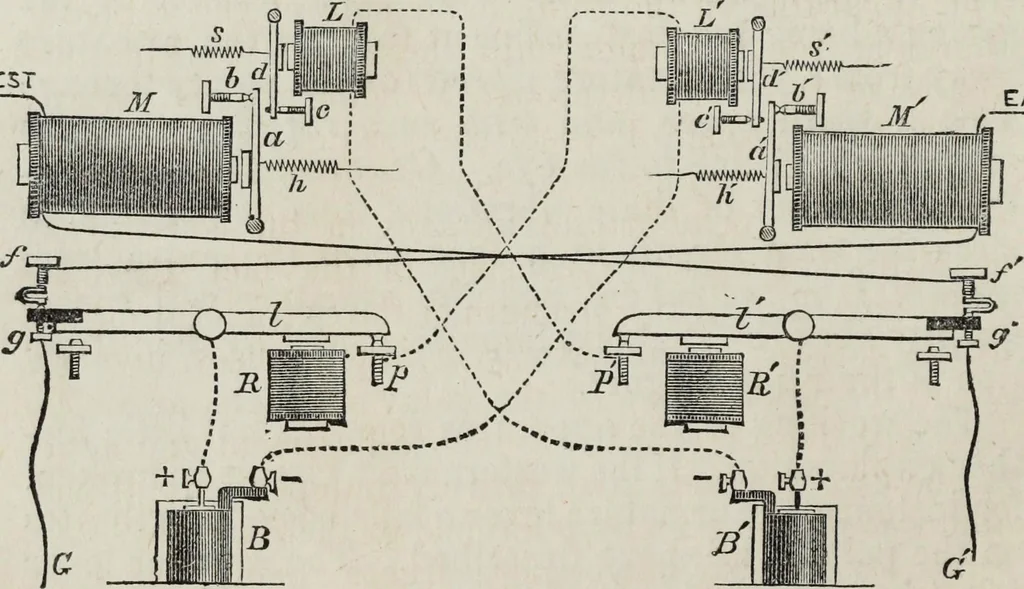

hat adjust the extra local magnets should beoiled with line oil to prevent wear and make their ad-justment easy. The extra local batteries must be keptof a uniform strength ; if they are allowed to becomeweak the instrument will be thrown out of adjustment.79. Millikens Eepeater.—In the general… … EAST Fig. 28. wire from the west passes through the relay magnet Mand the repeating points / g of the opposite soun-der, and thence to the battery and ground at G. Theeastern line passes through M, / and g to G, in a simi-lar manner. The extra local magnets L and L are arranged, asshown in the…
