Modern practice of the electric telegraph. A handbook for electricians and operators (1872)
Pope, Frank L. (Franklin Leonard), 1840-1895 · New York : D. Van Nostrand · leaf 35

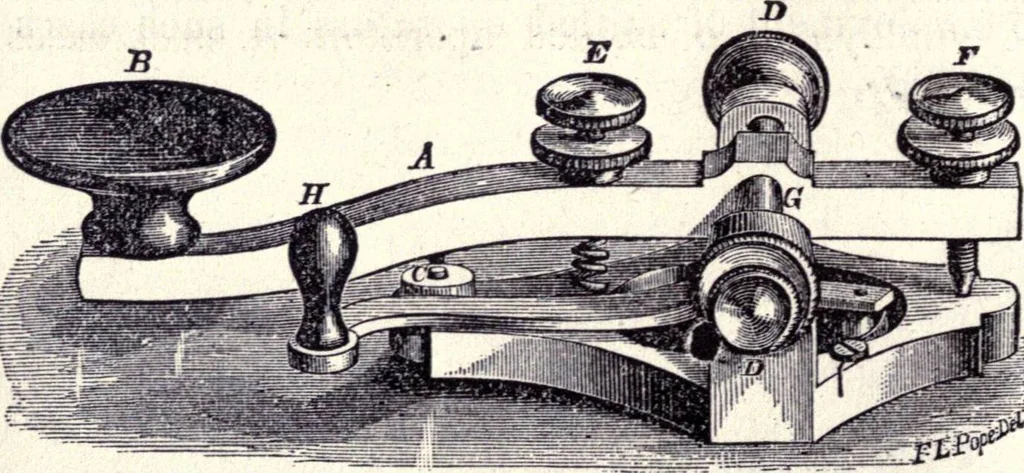

r stvle, which embosses amark upon a narrow strip of paper, moved uniformlyalong by clock-work. As long as a current continuesto flow through the coils of the electro-magnet thearmature is attracted, and a mark is made upon themoving paper. As soon as the circuit is broken thearmature ceases to be… … Fio. 10. 52. THE MORSE SIGXAL KEY is shown in fig. 10.* Itconsists of a brass lever, A, four or five inches in length,which is hung upon a steel arbor, G, between adjustableset screws, I) 1), in such a manner as to allow it tamove freely in a vertical direction. This movement,however, is limited in…
Telegraph
