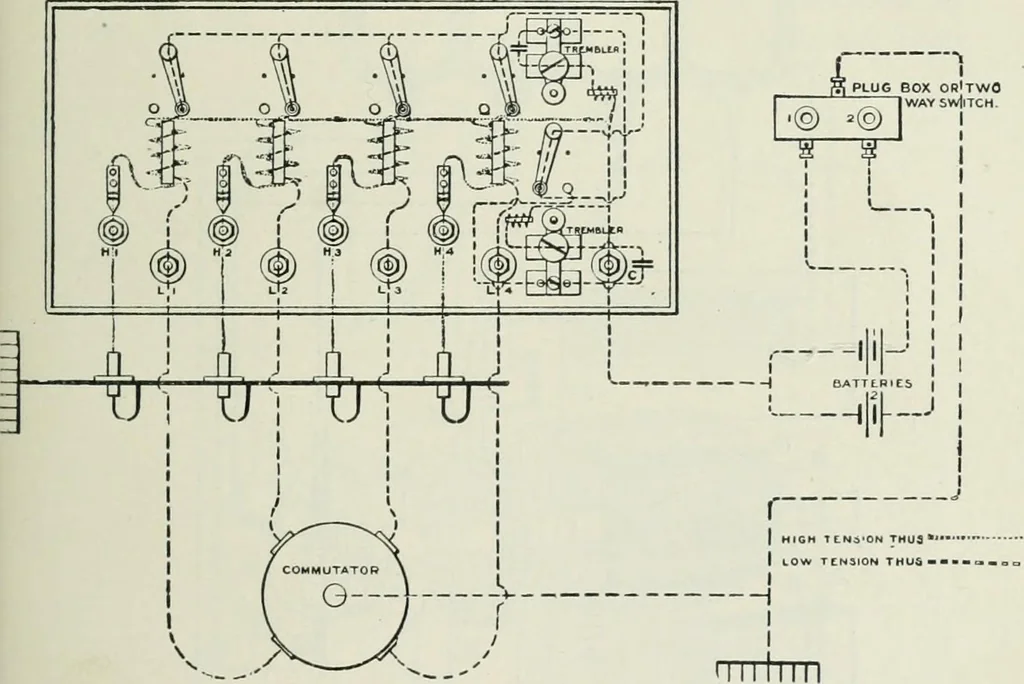

thearrangement, and it will be noticed that each cylinder isprovided with a switch which greatly facilitates testing. IGNITION IN PETROL ENGINES 163 HIGH TENSION MAGNETO IGNITION This system is coming much into favour, having beenadopted by Pan hard et Levassor, &c. The system heredescribed is… … Diagram of Connections of \\ilson-Pilcher Ignition wire and corresponds with the primary winding of an inductioncoil, A 2 being of fine wire and corresponding to the secondary.One end of the winding a i is earthed on to the shaft of themachine, while the secondary winding forms a continuation ofthe…
