Large spacecraft antennas - New geometric configuration design concepts (1971)

Oliver, R. E · leaf 4

An illustration from Large spacecraft antennas - New geometric configuration design concepts, 1971, leaf 4

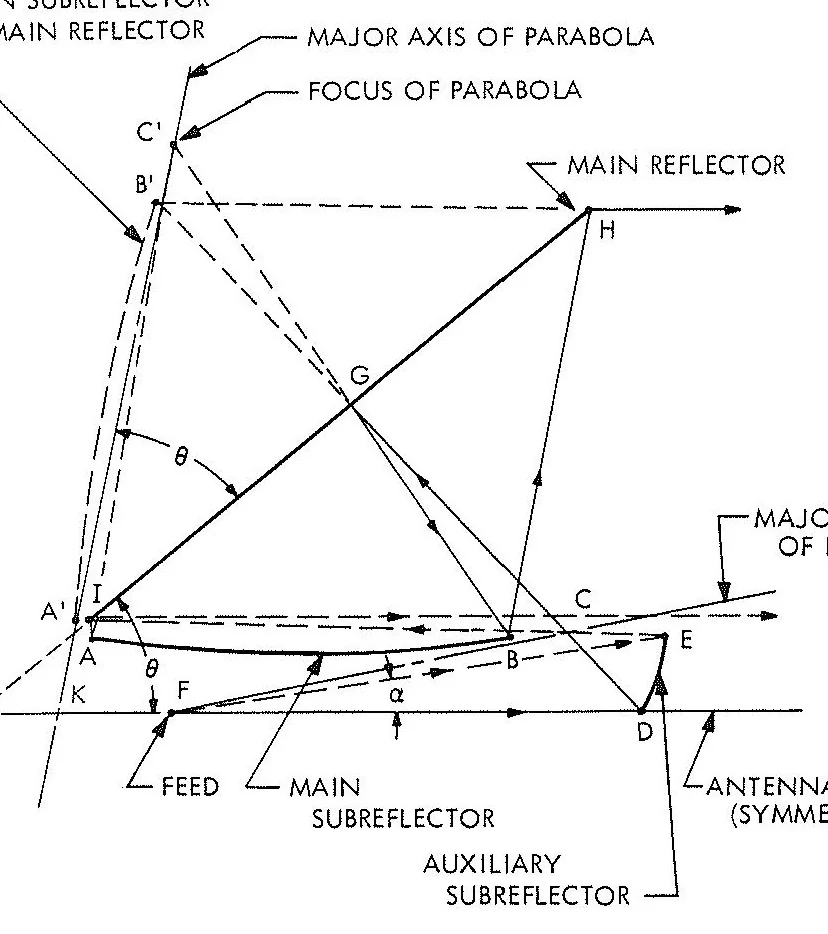

AXIS OF PARABOLA IMAGE OF SUBREFLECTOR IN MAIN REFLECTOR ■SUBREFLECTOR ^-FEED CENTER Figure 5. Multiple-reflection conical antenna REFLECTION OF MAIN SUBREFLECTOR … Figure 6. Multiple-reflection conical antenna with modified Cassegrain feed half angles a and p (Figure 5) will emerge from the antenna parallel to the antenna axis. Further, it is also easily shown that all path lengths of these rays from the feed center F to any plane normal to the antenna axis…
