COMPARATIVE STUDY OF THE HEAT TRANSFER OF A NOZZLE BLADE PROFILE IN A WIND TUNNEL AND IN AN AIR TURBINE (1974)

DYBAN, Y. P., KUROSH, V. D · leaf 5

An illustration from COMPARATIVE STUDY OF THE HEAT TRANSFER OF A NOZZLE BLADE PROFILE IN A WIND TUNNEL AND IN AN AIR TURBINE, 1974, leaf 5

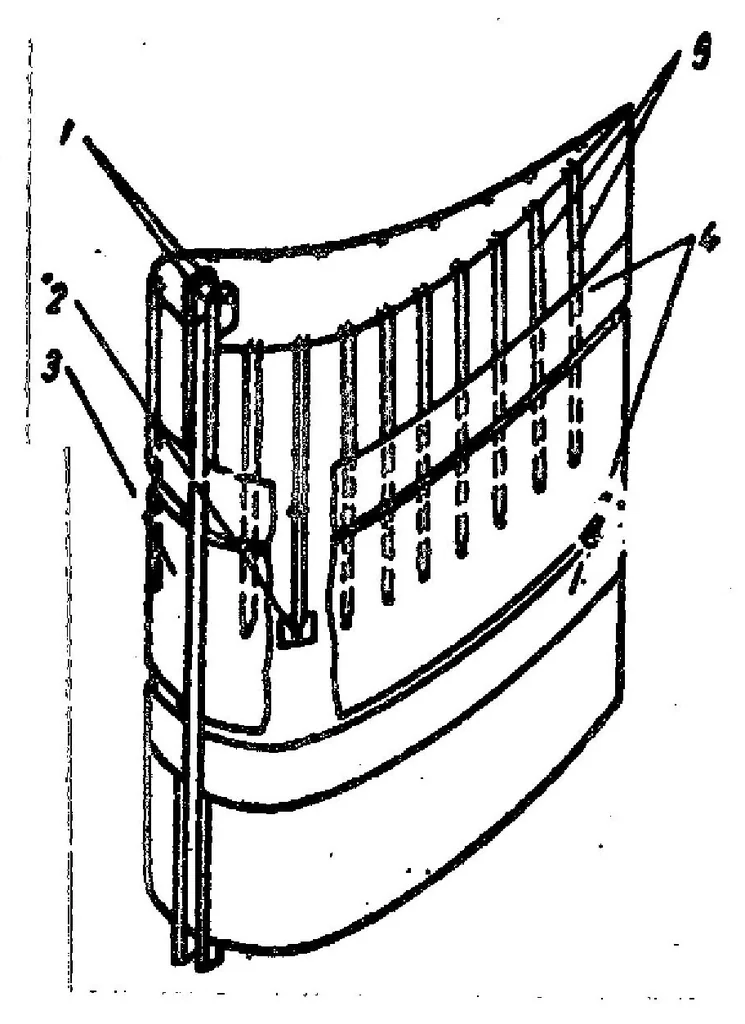

the band being heated, a thin mica spacer was placed between Figure 2. Structural diagram of the heated blade. the junction and the band. 1- current conductor leads; 2- electrical insulation The bands glued to the (mica sheet); 3- main heated band; k~ heat insulation blade were heated by direct…
