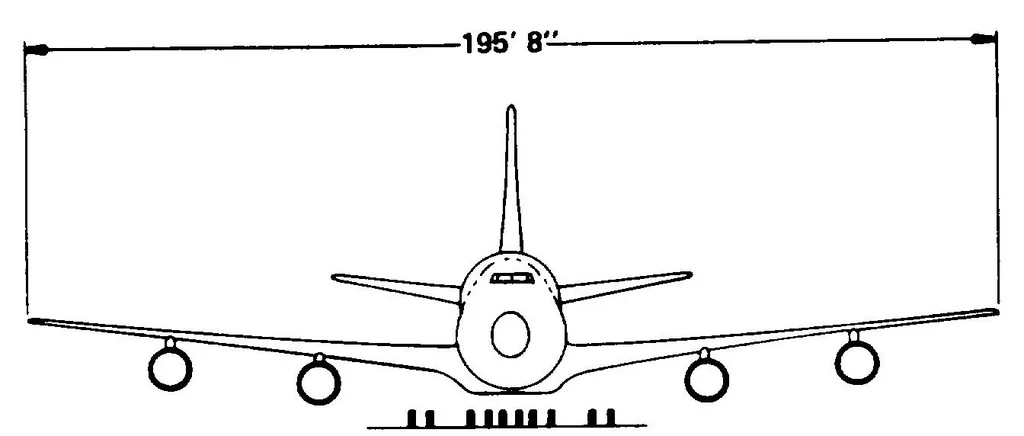

GENERAL ARRANGEMENT 747-LH2 … ■ ■ ■ This picture shows a way to modify the 747 for LH2 fuel. The upper lobe is expanded and carried over the lull length of the fuselage. AH fuel is carried in this upper lobe. Other component geometries are unchanged.
